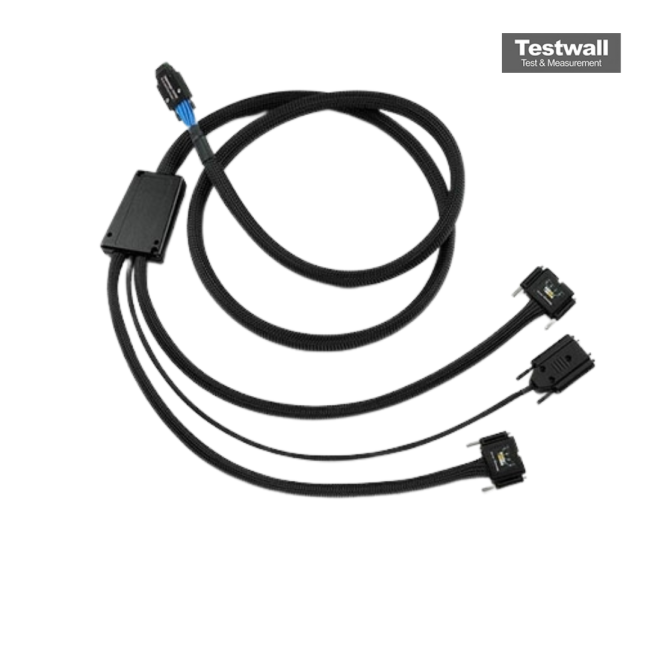

Tektronix P6980
34-Channel Differential High Density Compression Probe with D-Max
Single-Ended Probe Probe Type
500 MHz Bandwidth
±40 V (±20 V with 2x attenuation) Input Voltage Range
10X Attenuation Ratio
10 MΩ || 11.5 pF Input Impedance
| Attribute | Value |
|---|---|
| Probe Type | Single-Ended Probe |
| Bandwidth | 500 MHz |
| Input Voltage Range | ±40 V (±20 V with 2x attenuation) |
| Attenuation Ratio | 10X |
| Input Impedance | 10 MΩ || 11.5 pF |
| Rise Time | 700 ps |
| Cable Length | 1.3 m (4.3 ft) |
| Connector Type | TekVPI Probe Interface |
| Compatible Oscilloscopes | Tektronix MSO/DPO5000, MSO/DPO7000, DPO7000C, MSO/DPO70000 Series |
| Operating Temperature | 0°C to +50°C |
Tektronix P6980 Options:
- P6980 - L0 - English manual
- P6980 - L99 - No manual
- P6980 - CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- P6980 - C3 - Calibration Service, 3 Years
- P6980 - C5 - Calibration Service, 5 Years
- P6980 - R3 - Repair Service, 3 Years
- P6980 - R5 - Repair Service, 5 Years
- P6980 - R1PW - Repair Service Coverage, 1-year Post Warranty
- P6980 - R2PW - Repair Service Coverage, 2-years Post Warranty
- P6980 - R3DW - Repair Service Coverage, 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P6980 - R5DW - Repair Service Coverage, 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P6980 |
|---|
The Tektronix P6980 differential probe ensures signal integrity with ultra-low capacitance, supporting small voltage swings on high-speed buses like DDR2/DDR3 with TLA7000 logic analyzers.
Its connectorless D-Max technology enables reliable high-density probing with minimal signal intrusion and is ideal for debugging digital signal integrity.
Testwall can supply the used Tektronix P6980, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6980.
