Tektronix

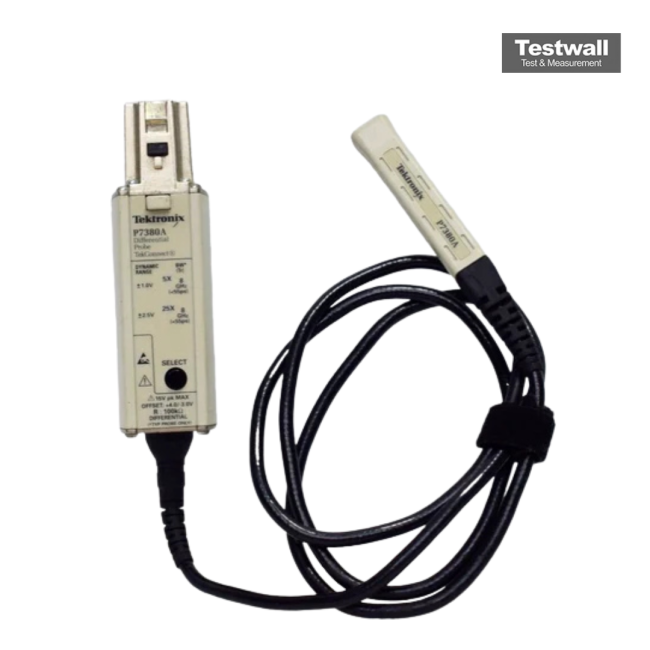

Tektronix P7380
Differential Probe, 8 GHz
8 GHz Bandwidth
48.6 ps Rise Time
50 Ω Input Impedance
±800 mV Dynamic Range
10X Attenuation Ratio
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Rise Time | 48.6 ps |
| Input Impedance | 50 Ω |
| Dynamic Range | ±800 mV |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±8 V (DC + Peak AC) |
| Cable Length | 1.2 m (46 in) |
| Compatible Oscilloscopes | Tektronix DPO/DSA/MSO70000 Series, DPO7000 Series |
| Connector Interface | TriMode™ (SMA, Differential, Single-Ended) |
| Operating Temperature | 0°C to +50°C |
Tektronix P7380 Options:
- P7380A - C3 - Calibration Service 3 Years
- P7380A - C5 - Calibration Service 5 Years
- P7380A - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P7380A - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P7380A - G3 - Complete Care 3 Years (includes loaner, discount on scheduled calibration and more)
- P7380A - G5 - Complete Care 5 Years (includes loaner, discount on scheduled calibration and more)
- P7380A - R3 - Repair Service 3 Years
- P7380A - R5 - Repair Service 5 Years
- P7380A - L0 - English manual
- P7380A - L5 - Japanese manual
- P7380A - L7 - Simplified Chinese manual
- P7380A - D1 - Calibration Data Report
- P7380A - R3DW - Repair Service Coverage 3 Years (includes product warranty period); 3-year period starts at time of customer instrument purchase
- P7380A - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of customer instrument purchase
| Model | P7380 |
|---|
The Tektronix P7380 differential probe delivers high signal fidelity with >12.5 GHz bandwidth (typical) and Zmin >200 Ω up to 10 GHz. It offers low probe loading, 100 kΩ differential DC resistance, and 50 kΩ single-ended input resistance for accurate high-speed measurements.
Ideal for >8 GHz handheld probing, it supports soldered, fixtured, and Tip-Clip™ based flexible connections for a wide range of test applications.
Testwall can supply the used Tektronix P7380, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7380.
