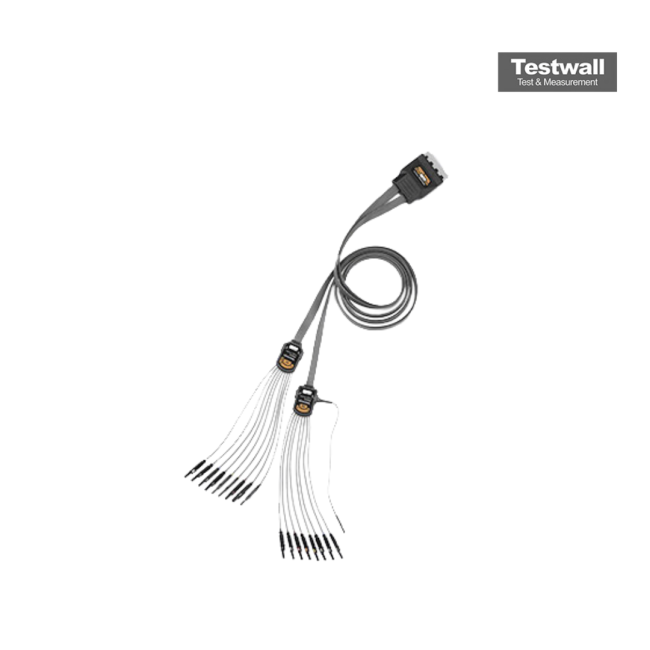

Tektronix P6910
34-channel Single-ended High-density Compression Probe
Logic Probe / Digital Probe Probe Type
18 Channels Number of Channels
Tektronix TDS694C, TLA Series Logic Analyzers Compatible Instruments
-6V to +6V Input Voltage Range
-2V to +4V Threshold Range
| Attribute | Value |
|---|---|
| Probe Type | Logic Probe / Digital Probe |
| Number of Channels | 18 Channels |
| Compatible Instruments | Tektronix TDS694C, TLA Series Logic Analyzers |
| Input Voltage Range | -6V to +6V |
| Threshold Range | -2V to +4V |
| Maximum Input Frequency | Up to 500 MHz |
| Input Impedance | 100 kΩ |
| Input Capacitance | 1.5 pF |
| Connector Type | Mictor Connector (38-pin) |
| Cable Length | 0.3 m (approximately 12 inches) |
Tektronix P6910 Options:
- P6910 - 1K - Add 17-Channel probing accessories <100 MHz typical probing performance (recommend 2 each for each P6910 probe)
- P6910 - 2K - Add 17-Channel probing accessories, high-performance (recommend 2 each of this option for each P6910 probe)
- P6910 - L0 - English manual
- P6910 - L99 - No manual
- P6910 - CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- P6910 - C3 - Calibration Service, 3 Years
- P6910 - C5 - Calibration Service, 5 Years
- P6910 - R3 - Repair Service, 3 Years
- P6910 - R5 - Repair Service, 5 Years
- P6910 - R1PW - Repair Service Coverage, 1-year Post Warranty
- P6910 - R2PW - Repair Service Coverage, 2-years Post Warranty
- P6910 - R3DW - Repair Service Coverage, 3 Years (includes product warranty period); 3-year period starts at time of instrument purchase
- P6910 - R5DW - Repair Service Coverage, 5 Years (includes product warranty period); 5-year period starts at time of instrument purchase
| Model | P6910 |
|---|
The Tektronix P6910 with 196-3470-01 Differential Flying Lead Set is an 8-channel single-ended logic probe accessory designed for the P6810 and P6910 probes. It features 1 pF input capacitance, 150 ohm damping resistors, and independent ground-signal connectivity.
Ideal for dense pin arrays and backplane testing in P6800 Series systems, compatible with 2 mm and 2.54 mm pitch layouts, ensuring flexible probing.
Testwall can supply the used Tektronix P6910, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6910.
