Tektronix PA4000
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Voltage Measurement Range | Up to 1000 V RMS |
| Current Measurement Range | Up to 2000 A RMS (with external current sensors) |
| Frequency Range | DC and 0.1 Hz to 1 MHz |
| Basic Power Accuracy | 0.04% |
| Display | 7-inch color TFT LCD touchscreen |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Sampling Rate | 2 MS/s per channel |
| Harmonic Analysis | Up to 500th harmonic |
| Power Supply Input | 100–240 V AC, 50/60 Hz |
| Model | PA4000 |
|---|

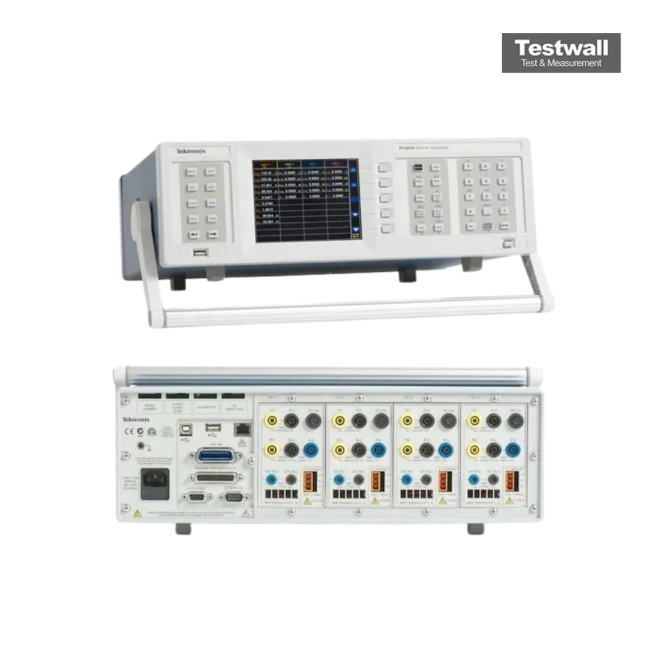

The Tektronix PA4000 Power Analyzer provides high-precision power, energy, and efficiency measurements with up to 4 input modules and unmatched 0.01% basic accuracy for voltage and current. It incorporates Spiral Shunt technology and advanced processing for reliable readings, even with waveforms having crest factors up to 10.
Equipped with dual current shunts, it offers resolution from microwatts to kilowatts, built-in harmonic analysis up to the 100th order, and motor analysis with torque and speed inputs—all standard.
Testwall can supply the used Tektronix PA4000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PA4000.
