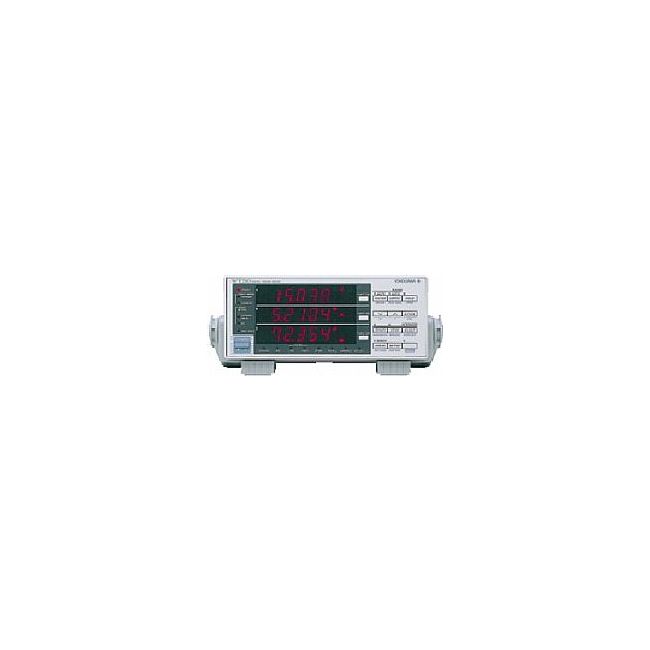

Yokogawa WT210
500MHz - 100KHz Power Meter
Voltage, Current, Power, Apparent Power, Reactive Power, Power Factor, Phase Angle, Frequency, Voltage Peak, Current Peak Measurement Parameters
15 V, 30 V, 60 V, 150 V, 300 V, 600 V (RMS) Voltage Measurement Range
0.5 A, 1 A, 2 A, 5 A, 10 A, 20 A (RMS) Current Measurement Range
±0.1% of reading Basic Power Accuracy
DC, 0.5 Hz to 100 kHz Frequency Range
| Attribute | Value |
|---|---|
| Measurement Parameters | Voltage, Current, Power, Apparent Power, Reactive Power, Power Factor, Phase Angle, Frequency, Voltage Peak, Current Peak |
| Voltage Measurement Range | 15 V, 30 V, 60 V, 150 V, 300 V, 600 V (RMS) |
| Current Measurement Range | 0.5 A, 1 A, 2 A, 5 A, 10 A, 20 A (RMS) |
| Basic Power Accuracy | ±0.1% of reading |
| Frequency Range | DC, 0.5 Hz to 100 kHz |
| Display | Digital LCD display with simultaneous multi-parameter readout |
| Input Configuration | Single-phase, 2-wire measurement |
| Interface / Communication | GP-IB (IEEE 488), RS-232C optional |
| Integration Function | Watt-hour (Wh), Ampere-hour (Ah) integration measurement with timer |
| Power Supply Requirements | 100 to 240 VAC, 50/60 Hz, approximately 30 VA |
Yokogowa WT210 Options:
- WT210 - -D - Power cord UL/CSA standard
- WT210 - -F - Power cord VDE standard
- WT210 - -R - Power cord AS standard
- WT210 - -Q - Power cord BS standard
- WT210 - /C1 - GP-IB communication interface
- WT210 - /C2 - Serial (RS-232-C) communication interface
- WT210 - /EX1 - External input 2.5/5/10 V
- WT210 - /EX2 - External input 50/100/200 mV
- WT210 - /HRM - Harmonic measurement function
- WT210 - /DA4 - 4-channel DA output
- WT210 - /CMP - Comparator and D/A, 4 channels each
| Model | WT210 |
|---|
The Yokogawa WT210 is a Precision Power Analyser.
