Tektronix PG506
| Attribute | Value |
|---|---|
| Output Amplitude | 0 to 4V into 50Ω, 0 to 8V into open circuit |
| Rise and Fall Time | ≤1 ns |
| Output Frequency Range | DC to 50 MHz |
| Output Impedance | 50Ω |
| Duty Cycle | Variable from approximately 25% to 75% |
| DC Offset Range | ±4V into 50Ω, ±8V into open circuit |
| Calibration Signal Output | Provides precision amplitude levels for oscilloscope calibration |
| Power Requirements | 115V or 230V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to +50°C |
| Form Factor | Benchtop, compatible with Tektronix TM500/TM5000 mainframe |
| Model | PG506 |
|---|

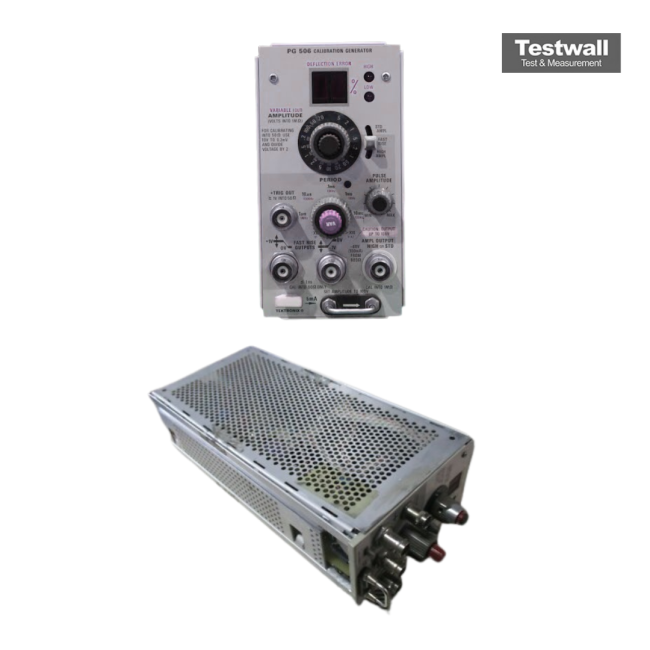

The Tektronix PG506 Calibration Generator provides precise voltage and timing signals for testing and calibrating oscilloscopes and other electronic instruments. It features adjustable pulse widths, selectable amplitudes, and highly stable output characteristics, ensuring accurate and repeatable performance in laboratory and field environments.
Designed for ease of use, the PG506 delivers reliable calibration signals suitable for both analog and digital applications, with clear front-panel controls and dependable operation.
Testwall can supply the used Tektronix PG506 Calibration Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PG506 Calibration Generator.
