Tektronix PWS2185
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 18 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 90 W |
| Number of Output Channels | 1 |
| Voltage Regulation (Load) | ≤ 0.01% + 3 mV |
| Current Regulation (Load) | ≤ 0.01% + 3 mA |
| Ripple and Noise (Voltage, RMS) | ≤ 1 mV RMS |
| Display Type | Dual 4-digit LED display (Voltage and Current) |
| Operating Temperature Range | 0°C to 40°C |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
Tektronix PWS2185 Options:
- PWS2185 - A0 - North America Power Plug
- PWS2185 - A1 - Universal Euro Power Plug
- PWS2185 - A2 - United Kingdom Power Plug
- PWS2185 - A3 - Australia Power Plug
- PWS2185 - A5 - Switzerland Power Plug
- PWS2185 - A10 - China Power Plug
- PWS2185 - A11 - India Power Plug
- PWS2185 - A12 - Brazil Power Plug
- PWS2185 - L0 - English
- PWS2185 - L1 - French
- PWS2185 - L2 - Italian
- PWS2185 - L3 - German
- PWS2185 - L4 - Spanish
- PWS2185 - L6 - Portuguese
- PWS2185 - L7 - Simplified Chinese
- PWS2185 - L8 - Traditional Chinese
- PWS2185 - L9 - Korean
- PWS2185 - L10 - Russian
- PWS2185 - C3 - Calibration Service 3 Years
- PWS2185 - C5 - Calibration Service 5 Years
- PWS2185 - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- PWS2185 - D1 - Calibration Data Report
- PWS2185 - D3 - Calibration Data Report 3 Years (with Option C3)
- PWS2185 - D5 - Calibration Data Report 5 Years (with Option C5)
- PWS2185 - R5 - Repair Service 5 Years
- PWS2185 - SILV100 - Standard Warranty Extended to 5 Years
| Model | PWS2185 |
|---|

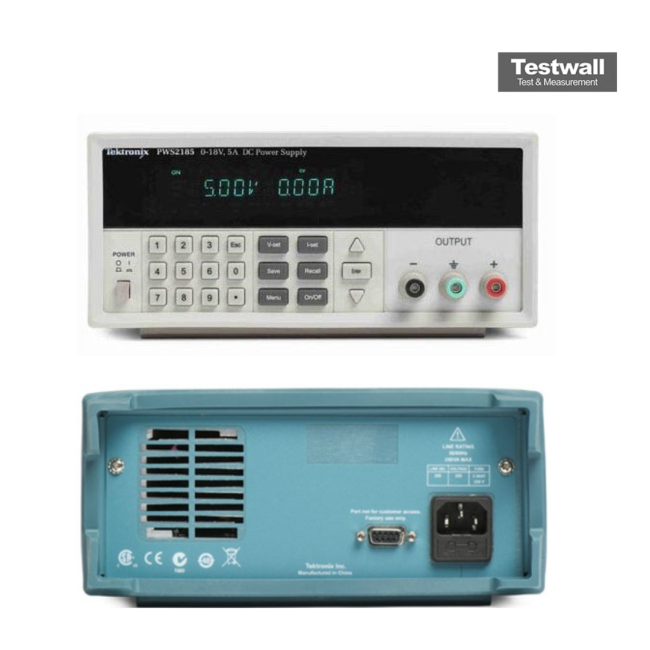

The Tektronix PWS2185 is a single‑channel linear DC power supply delivering up to 18 V and 5 A (90 W), with ≤0.05 % ±10 mV voltage accuracy and ≤0.2 % ±10 mA current accuracy. Its compact 242×105×384 mm chassis houses a bright vacuum fluorescent display, 20‑preset memory, and built‑in protections including short‑circuit protection and password lock.
The PWS2185 supports direct numeric input via keypad and rotary knob, offering clean, ripple‑free output ideal for analog, RF, educational, and lab environments. Interchangeable 110/220 V AC input ensures global compatibility.
Testwall can supply the used Tektronix PWS2185, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PWS2185
