Tektronix

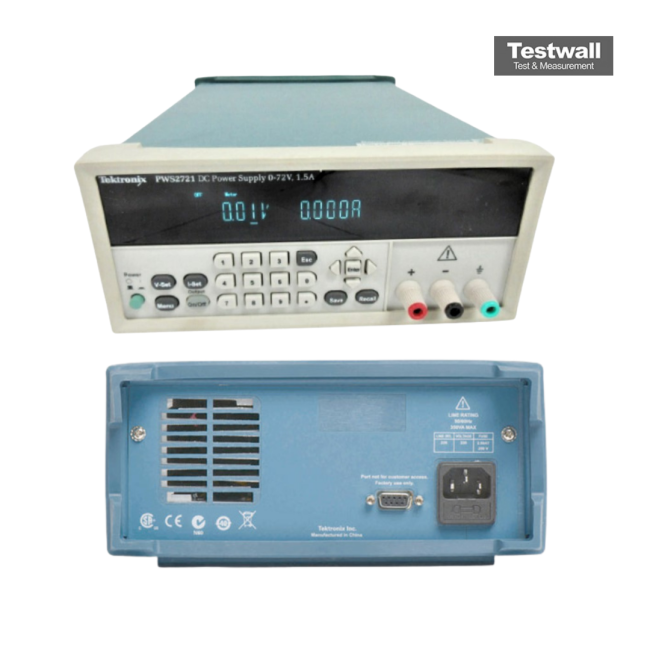

Tektronix PWS2721
Power Supply, 72V, 1.5A
0 to 72 V Output Voltage Range
0 to 1 A Output Current Range
1 Number of Outputs
72 W Output Power (Maximum)
10 mV Voltage Setting Resolution
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 72 V |
| Output Current Range | 0 to 1 A |
| Number of Outputs | 1 |
| Output Power (Maximum) | 72 W |
| Voltage Setting Resolution | 10 mV |
| Current Setting Resolution | 1 mA |
| Line Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Load Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Display Type | Dual 4-digit LED display (Voltage and Current) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
Tektronix PWS2721 Options:
- PWS2721 - A0 - North America Power Plug
- PWS2721 - A1 - Universal Euro Power Plug
- PWS2721 - A2 - United Kingdom Power Plug
- PWS2721 - A3 - Australia Power Plug
- PWS2721 - A5 - Switzerland Power Plug
- PWS2721 - A10 - China Power Plug
- PWS2721 - A11 - India Power Plug
- PWS2721 - A12 - Brazil Power Plug
- PWS2721 - L0 - English
- PWS2721 - L1 - French
- PWS2721 - L2 - Italian
- PWS2721 - L3 - German
- PWS2721 - L4 - Spanish
- PWS2721 - L6 - Portuguese
- PWS2721 - L7 - Simplified Chinese
- PWS2721 - L8 - Traditional Chinese
- PWS2721 - L9 - Korean
- PWS2721 - L10 - Russian
- PWS2721 - C3 - Calibration Service 3 Years
- PWS2721 - C5 - Calibration Service 5 Years
- PWS2721 - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- PWS2721 - D1 - Calibration Data Report
- PWS2721 - D3 - Calibration Data Report 3 Years (with Option C3)
- PWS2721 - D5 - Calibration Data Report 5 Years (with Option C5)
- PWS2721 - R5 - Repair Service 5 Years
- PWS2721 - SILV100 - Standard Warranty Extended to 5 Years
| Model | PWS2721 |
|---|
The Tektronix PWS2721 offers up to 72V output with 0.05% voltage accuracy and 0.2% current accuracy. Featuring 10 mV/10 mA resolution, low ripple noise (<3 mVp-p), and linear regulation, it's ideal for precise power delivery across a variety of test applications.
With a numeric keypad, 20 memory presets, and adjustable step controls, the PWS2721 ensures accuracy and efficiency. It includes lockable settings to prevent unwanted changes during critical tests.
Testwall can supply the used Tektronix PWS2721, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PWS2721.
