Tektronix

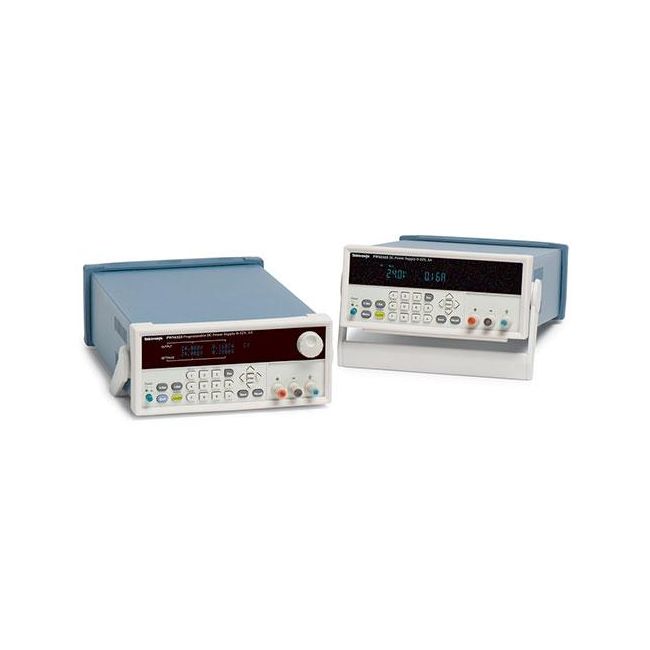

Tektronix PWS4205
Programmable DC Power Supply, 20 V, 5 A
0 to 20 V Output Voltage Range
0 to 5 A Output Current Range
100 W Maximum Output Power
1 Number of Output Channels
1 mV Voltage Setting Resolution
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 100 W |
| Number of Output Channels | 1 |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 1 mA |
| Line Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Load Regulation (Voltage) | ≤ 0.01% + 3 mV |
| Ripple and Noise (Voltage, RMS) | ≤ 350 µV |
| Interface | USB, RS-232 |
Tektronix PWS4205 Options:
- PWS4205 - A0 - Power Plug: North America
- PWS4205 - A1 - Power Plug: Universal Euro
- PWS4205 - A2 - Power Plug: United Kingdom
- PWS4205 - A3 - Power Plug: Australia
- PWS4205 - A5 - Power Plug: Switzerland
- PWS4205 - A10 - Power Plug: China
- PWS4205 - A11 - Power Plug: India
- PWS4205 - A12 - Power Plug: Brazil
- PWS4205 - L0 - Language: English
- PWS4205 - L1 - Language: French
- PWS4205 - L2 - Language: Italian
- PWS4205 - L3 - Language: German
- PWS4205 - L4 - Language: Spanish
- PWS4205 - L6 - Language: Portuguese
- PWS4205 - L7 - Language: Simplified Chinese
- PWS4205 - L8 - Language: Traditional Chinese
- PWS4205 - L9 - Language: Korean
- PWS4205 - L10 - Language: Russian
- PWS4205 - C3 - Calibration Service 3 Years
- PWS4205 - C5 - Calibration Service 5 Years
- PWS4205 - CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- PWS4205 - D1 - Calibration Data Report
- PWS4205 - D3 - Calibration Data Report 3 Years (with Option C3)
- PWS4205 - D5 - Calibration Data Report 5 Years (with Option C5)
- PWS4205 - R5 - Repair Service 5 Years
- PWS4205 - SILV100 - Standard Warranty Extended to 5 Years
| Model | PWS4205 |
|---|
The Tektronix PWS4205 Programmable Power Supply delivers 0.03% basic voltage accuracy and 0.05% current accuracy, ensuring precise and reliable power outputs up to 72 V. It features remote sense to correct voltage drop and less than 5 mVp-p ripple for stable performance.
List mode, USB programming, 40 memory setups, and a numeric keypad offer seamless test development and usability across applications requiring fast, accurate power sourcing.
Testwall can supply the used Tektronix PWS4205, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix PWS4205.
