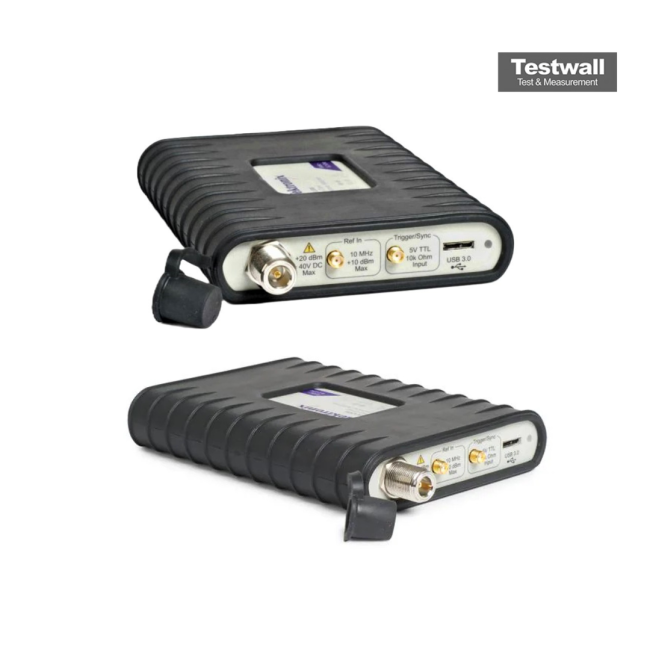

Tektronix RSA306
9 kHz to 6.2 GHz Spectrum Analyser
9 kHz to 6.2 GHz Frequency Range
40 MHz Real-Time Bandwidth
-160 dBm/Hz (typical) Displayed Average Noise Level (DANL)
70 dB Dynamic Range
±2 dB Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6.2 GHz |
| Real-Time Bandwidth | 40 MHz |
| Displayed Average Noise Level (DANL) | -160 dBm/Hz (typical) |
| Dynamic Range | 70 dB |
| Amplitude Accuracy | ±2 dB |
| Phase Noise | -95 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Interface/Connectivity | USB 3.0 |
| Power Supply | Bus-powered via USB (no external power required) |
| Weight | 0.45 kg (1 lb) |
| Software | SignalVu-PC RF Signal Analysis Software (included) |
Tektronix RSA306 Options:
- RSA306 - SVA - AM/FM/PM/Direct audio analysis
- RSA306 - SVT - Settling Time (frequency and phase) measurement
- RSA306 - SVM - General purpose modulation analysis
- RSA306 - SVP - Advanced Signal Analysis (including pulse measurements)
- RSA306 - SVO - Flexible OFDM Analysis
- RSA306 - SV23 - WLAN 802.11a/b/g/j/p measurement application
- RSA306 - SV24 - WLAN 802.11n measurement application (requires option SV23)
- RSA306 - SV25 - WLAN 802.11ac measurement application (requires option SV24). Limited to 40 MHz bandwidth on RSA306
- RSA306 - SV26 - APCO P25 measurement application
- RSA306 - SV27 - Bluetooth Basic LE Tx measurement
- RSA306 - SV28 - LTE Downlink RF measurements
- RSA306 - MAP - Mapping and signal strength
- RSA306 - SV56 - Playback of recorded files (requires 300 MB/sec read rate from storage for live rate playback)
- RSA306 - CON - SignalVu-PC live link to the MDO4000B series mixed-domain oscilloscopes
- RSA306 - SIGNALVU-PC-SVE SV2C - Live Link to MDO4000B and WLAN 802.11a/b/g/j/p/n/ac measurements (includes options CON, SV23, SV24 and SV25)
- RSA306 - C3 - Calibration Service 3 Years
- RSA306 - C5 - Calibration Service 5 Years
- RSA306 - D1 - Calibration Data Report
- RSA306 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA306 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA306 - R3 - Repair Service 3 Years (including warranty)
- RSA306 - R5 - Repair Service 5 Years (including warranty)
| Model | RSA306 |
|---|
The Tektronix RSA306 uses your PC and SignalVu‑PC™ software to analyze signals from 9 kHz to 6.2 GHz, with a wide dynamic range of +20 dBm to −160 dBm, meeting Mil‑Std 28800 Class 2 specs for harsh environments.
Includes 27 measurement types, real‑time spectrum/spectrogram views, and options for modulation, WLAN, Bluetooth, with Windows API and MATLAB driver support.
Testwall can supply the used Tektronix RSA306, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA306.
