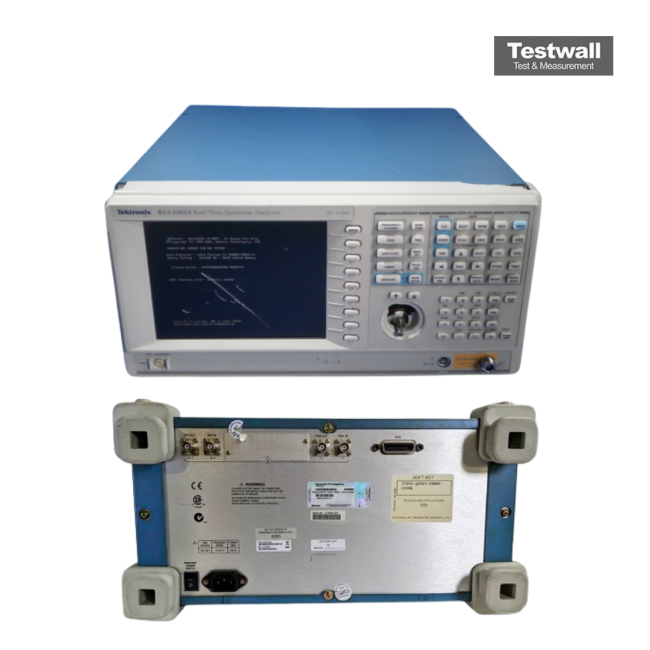

Tektronix RSA3303A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Real-Time Bandwidth | 15 MHz |
| Displayed Average Noise Level (DANL) | -150 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Spurious Free Dynamic Range (SFDR) | -65 dBc (typical) |
| Acquisition Memory Depth | Up to 64 MB |
| Display | 10.4-inch color TFT LCD touchscreen |
Tektronix RSA3303A Options:
- RSA3303A - Opt. 21 - Advanced Measurement Suite Software
| Model | RSA3303A |
|---|
The Tektronix RSA3303A is a high-performance real-time spectrum analyzer engineered to capture and analyze transient, time-varying, or periodic RF signals beyond the capabilities of traditional swept spectrum analyzers. It features up to 65.536 Ms (256MB) of internal memory for complete temporal analysis, and simultaneous views of time, frequency, and modulation domains enhance signal insight. Its spectrogram and frequency mask trigger enable efficient identification of elusive RF events, with built-in demodulators supporting AM, FM, FSK, and more.
Ideal for general-purpose modulation analysis, the RSA3303A includes differential IQ inputs, a 20 dB external preamp (up to 3 GHz), and a digital demodulator for affordable vector signal assessment. It supports wide-span analyses and excels in weak signal and phase noise measurement with a dynamic range up to 20 MHz.
Testwall can supply the used Tektronix RSA3303A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA3303A.
