Tektronix

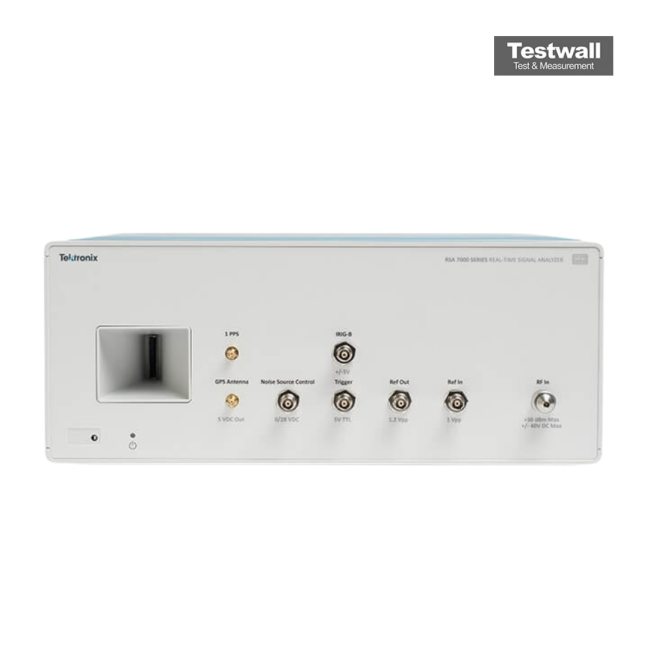

Tektronix RSA7100A
26.5 GHz Real time signal analyzer: includes CTRL7100A controller
DC to 14 GHz (standard); upgradeable to 26.5 GHz Frequency Range
Up to 800 MHz Real-Time Bandwidth
+20 dBm to -160 dBm (displayed average noise level) Dynamic Range
±0.5 dB (typical) Amplitude Accuracy
-110 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | DC to 14 GHz (standard); upgradeable to 26.5 GHz |
| Real-Time Bandwidth | Up to 800 MHz |
| Dynamic Range | +20 dBm to -160 dBm (displayed average noise level) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Phase Noise | -110 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) |
| Spurious-Free Dynamic Range (SFDR) | -65 dBc (typical) |
| Acquisition Memory Depth | Up to 4 GB of capture memory (scalable) |
| Input Impedance | 50 Ω |
| Interface & Connectivity | USB, LAN (Ethernet), optional GPIB; supports SignalVu-PC software |
| Operating Temperature Range | 0°C to +50°C |
Tektronix RSA7100A Options:
- RSA7100A - Opt. 14 - Frequency range 16 kHz-14 GHz
- RSA7100A - Opt. 26 - Frequency range 16 kHz-26.5 GHz
- RSA7100A - Opt. GPS - GPS receiver
- RSA7100A - Opt. NO GPS - No GPS receiver
- RSA7100A - Opt. CAL - Calibration report with data (ISO 17025)
- RSA7100A - Opt. GPS CAL - GPS receiver and calibration report with data (ISO17025)
- RSA7100A - Opt. C7100-A - Controller, no RAID storage
- RSA7100A - Opt. C7100-B - Controller, RAID storage, 20 minutes recording time at 800 MHz bandwidth (requires STREAMNL-SVPC)
- RSA7100A - Opt. C7100-C - Controller, RAID storage, > 120 minutes recording time at 800 MHz bandwidth (requires STREAMNL-SVPC)
- RSA7100A - Opt. SV09 - High performance real time (export class 3A002), node-locked license
- RSA7100A - Opt. B800NL-SVPC - 800 MHz acquisition bandwidth (for frequencies > 3.6 GHz), node locked
- RSA7100A - Opt. STREAMNL-SVPC - Streaming data, node locked
- RSA7100A - Opt. SVMHNL-SVPC - General Purpose Modulation Analysis to work with analyzer of any acquisition bandwidth and MDO, node locked
- RSA7100A - Opt. SVPHNL-SVPC - Pulse Analysis to work with analyzer of any acquisition bandwidth and MDO, node locked
- RSA7100A - Opt. TRIGHNL-SVPC - Advanced triggers (Frequency Mask, Density) to work with RSA7100A, node locked
- RSA7100A - Opt. MAPNL-SVPC - Mapping and signal strength, node locked
- RSA7100A - Opt. SV54NL-SVPC - Signal survey and classification, node locked
- RSA7100A - Opt. SVTNL-SVPC - Settling Time (frequency and phase) measurements, node locked
- RSA7100A - Opt. SV23NL-SVPC - WLAN 802.11a/b/g/j/p measurement, node locked
- RSA7100A - Opt. SV24NL-SVPC - WLAN 802.11n measurement (requires SV23), node locked
- RSA7100A - Opt. SV25HNL-SVPC - WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C (requires SV23 and SV24), node locked
- RSA7100A - Opt. SV26NL-SVPC - APCO P25 measurement, node locked
- RSA7100A - Opt. SV27NL-SVPC - Bluetooth measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C, node locked
- RSA7100A - Opt. SV28NL-SVPC - LTE Downlink RF measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C, node locked
- RSA7100A - Opt. SV31NL-SVPC - Bluetooth 5 measurements (requires SV27), node locked
- RSA7100A - Opt. SVANL-SVPC - AM/FM/PM/Direct Audio Analysis, node locked
- RSA7100A - Opt. SVONL-SVPC - Flexible OFDM Analysis, node locked
- RSA7100A - Opt. SVQPNL-SVPC - EMI CISPR Detectors, node locked
- RSA7100A - Opt. CONNL-SVPC - SignalVu-PC live link to the MDO4000B/C series mixed-domain oscilloscopes, node locked
- RSA7100A - Opt. L0 - English manual
- RSA7100A - Opt. L5 - Japanese manual
- RSA7100A - Opt. L7 - Simplified Chinese manual
- RSA7100A - Opt. L99 - No manual
- RSA7100A - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA7100A - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA7100A - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA7100A - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA7100A - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA7100A - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA7100A - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA7100A - Opt. A10 - China power plug (50 Hz)
- RSA7100A - Opt. A11 - India power plug (50 Hz)
- RSA7100A - Opt. A12 - Brazil power plug (60 Hz)
- RSA7100A - Opt. A99 - No power cord
- RSA7100A - Opt. C3 - Calibration Service 3 Years
- RSA7100A - Opt. C5 - Calibration Service 5 Years
- RSA7100A - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- RSA7100A - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
| Model | RSA7100A |
|---|
The Tektronix RSA7100A wideband signal analyzer offers real-time spectrum analysis up to 800 MHz, supports dual-interface seamless data streaming for up to 2 hours, and features RF/data separation for scalable GPU-based signal processing.
Ideal for radar, electronic warfare, and wideband communication system development, the RSA7100A enables advanced analysis through SignalVu-PC and DataVu-PC software tools.
Testwall can supply the used Tektronix RSA7100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA7100A.
