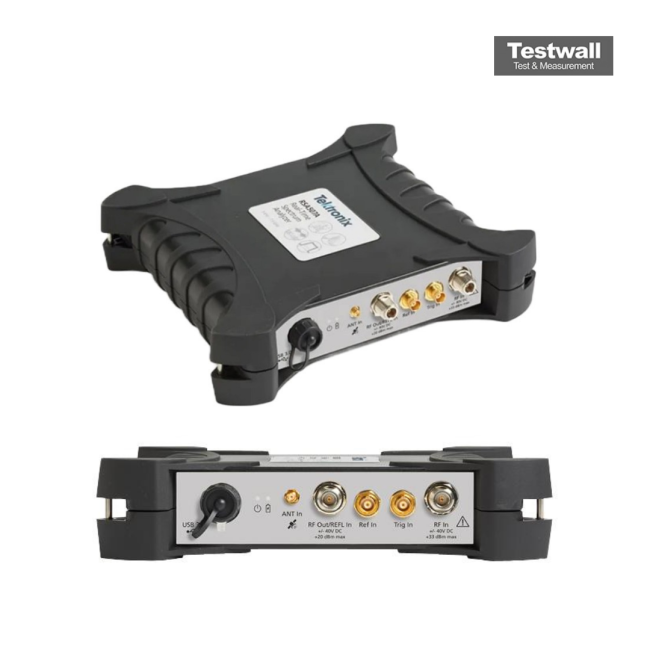

Tektronix RSA507A
USB Real Time Spectrum Analyser, 9 kHz - 7.5 GHz
9 kHz to 7.5 GHz Frequency Range
40 MHz Real-Time Bandwidth
-161 dBm/Hz (typ.) at 1 GHz Displayed Average Noise Level (DANL)
-98 dBc/Hz at 1 GHz, 10 kHz offset (typ.) Phase Noise
±1.5 dB Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 7.5 GHz |
| Real-Time Bandwidth | 40 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typ.) at 1 GHz |
| Phase Noise | -98 dBc/Hz at 1 GHz, 10 kHz offset (typ.) |
| Amplitude Accuracy | ±1.5 dB |
| Input Power Range | +20 dBm maximum input power |
| Spurious Free Dynamic Range (SFDR) | -65 dBc (typ.) |
| Interface/Connectivity | USB 3.0 (connects to PC for control and power) |
| Power Requirements | USB bus powered (no external power supply required) |
| Operating Temperature | 0°C to +50°C |
Tektronix RSA507A Options:
- RSA507A - Option 04 - Tracking generator, 10 MHz – 7.5 GHz
- RSA507A - Option CTRL-G1-B - Portable controller, Brazil power
- RSA507A - Option FZ-G1 - Portable controller, China power
- RSA507A - Option CTRL-G1-E - Portable controller, Europe power
- RSA507A - Option CTRL-G1-I - Portable controller, India power
- RSA507A - Option CTRL-G1-N - Portable controller, North America power
- RSA507A - Option CTRL-G1-U - Portable controller, UK power
- RSA507A - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA507A - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA507A - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA507A - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA507A - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA507A - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA507A - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA507A - Opt. A10 - China power plug (50 Hz)
- RSA507A - Opt. A11 - India power plug (50 Hz)
- RSA507A - Opt. A12 - Brazil power plug (60 Hz)
- RSA507A - Opt. A99 - No power cord
- RSA507A - Opt. L0 - English manual
- RSA507A - Opt. L1 - French manual
- RSA507A - Opt. L2 - Italian manual
- RSA507A - Opt. L3 - German manual
- RSA507A - Opt. L4 - Spanish manual
- RSA507A - Opt. L5 - Japanese manual
- RSA507A - Opt. L6 - Portuguese manual
- RSA507A - Opt. L7 - Simplified Chinese manual
- RSA507A - Opt. L8 - Traditional Chinese manual
- RSA507A - Opt. L9 - Korean manual
- RSA507A - Opt. L10 - Russian manual
- RSA507A - Opt. C3 - Calibration Service 3 Years
- RSA507A - Opt. C5 - Calibration Service 5 Years
- RSA507A - Opt. D1 - Calibration Data Report
- RSA507A - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA507A - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA507A - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | RSA507A |
|---|
The Tektronix RSA507A is a portable USB real-time spectrum analyzer covering 9 kHz to 7.5 GHz with 40 MHz bandwidth. It features transient capture with 15 µs POI, GPS support, and robust build for EMI/EMC pre-compliance, interference hunting, and signal diagnostics.
Equipped with SignalVu-PC and DataVu-PC software, it enables advanced analysis, remote operation, and long-term event recording for professional spectrum management in the field.
Testwall can supply the used Tektronix RSA507A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA507A.
