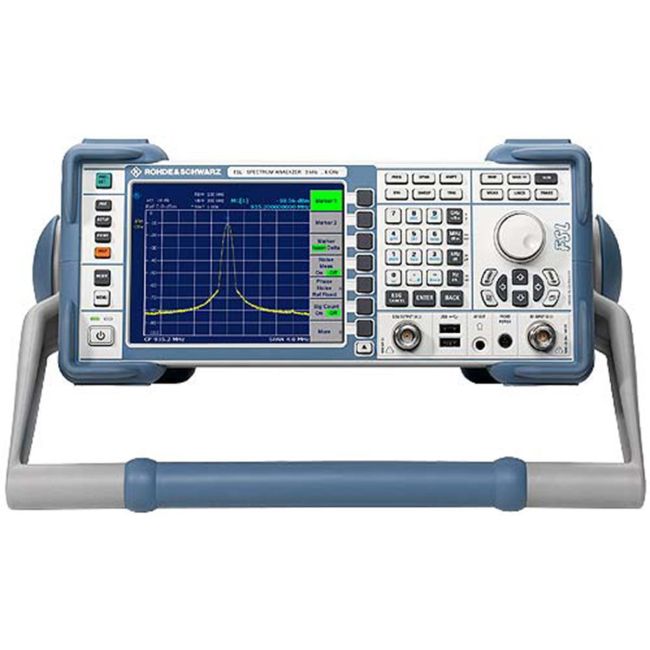

Rohde & Schwarz FSL6-06 6 GHz Spectrum Analyzer, Type N (f)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Connector Type | Type N (female) |
| Resolution Bandwidth | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -135 dBm (typical, at 1 GHz) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (at 1 GHz) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | 100 dB (typical) |
| Sweep Time | 10 ms to 1000 s (span > 0 Hz) |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
Rohde & Schwarz FSL6-06 6 GHz Spectrum Analyzer, Type N (f) Options:
- FSL - FSL-B10 - GPIB Interface (1300.6208.02)
- FSL - FSL-B22 - RF Amplifier (1300.5953.02)
- FSL - FSL-B30 - DC Power Supply (1300.6308.02)
- FSL - FSL-B31 - NIMH Battery Pack (1300.6408.02)
- FSL - FSL-Z4 - Additional Charger Unit (1300.5430.02)
| Model | FSL6-06 |
|---|
The Rohde & Schwarz FSL6-06 Spectrum Analyzer offers a 9 kHz to 6 GHz frequency range, 28 MHz bandwidth, and optional tracking generator. It features low DANL (–140 dBm/Hz to –152 dBm/Hz), –103 dBc/Hz phase noise, and +13 dBm TOI. Weighs under 8 kg with USB, LAN, and GPIB interfaces.
Ideal for RF development, field service, and production, it supports gated sweep, zero-span modes, and real-time transient analysis for signal fidelity.
Testwall can supply the used Rohde & Schwarz FSL6-06 Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSL6-06 Spectrum Analyzer.
