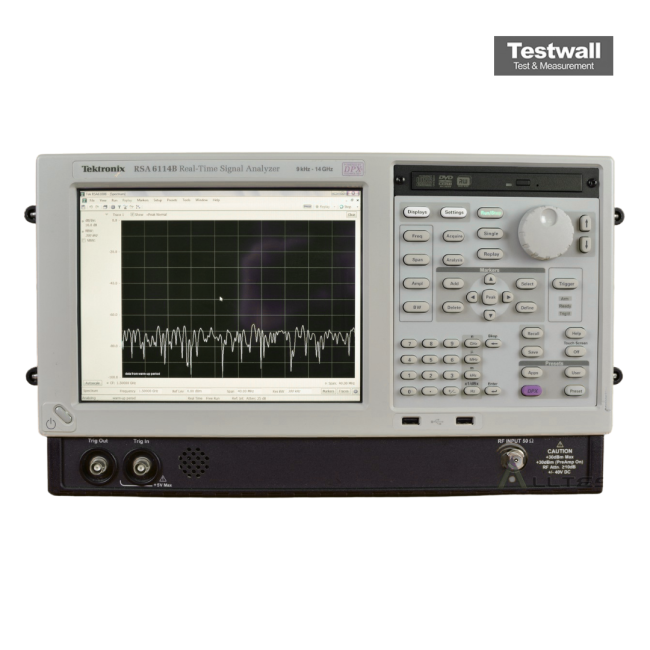

Tektronix RSA6114B
Real-Time Spectrum Analyser, 9 kHz - 14 GHz
9 kHz to 14 GHz Frequency Range
110 MHz Real-Time Bandwidth
-161 dBm/Hz (typical) at 1 GHz Displayed Average Noise Level (DANL)
-110 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
±0.5 dB Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 14 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -110 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB |
| Spurious-Free Dynamic Range (SFDR) | -70 dBc (typical) |
| Frequency Reference Accuracy | ±0.01 ppm with internal high-stability timebase option |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Acquisition Memory Depth | Up to 300 million samples (with maximum memory option) |
| Model | RSA6114B |
|---|
The Tektronix RSA6114B Real-Time Spectrum Analyzer offers 9 kHz to 14 GHz frequency range, -151 dBm/Hz DANL at 2 GHz, and real-time DPX® display for detecting transients down to 3.7 µs. It supports up to 7.15 s acquisitions at 110 MHz bandwidth stored as MATLAB™ files.
It provides spectrum, vector, and modulation analysis, with time-correlated multi-domain triggering and capture capabilities for high-precision signal diagnostics and troubleshooting.
Testwall can supply the used Tektronix RSA6114B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA6114B.
