Tektronix RSA6120B
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 20 GHz |
| Real-Time Bandwidth | 110 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 2 GHz |
| Phase Noise | -126 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Dynamic Range | 78 dB (typical spurious-free dynamic range) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Trigger Types | Free Run, External, IF Power, Time, Frequency Mask Trigger (FMT) |
| Display | 15.1-inch XGA color LCD touchscreen display |
Tektronix RSA6120B Options:
- RSA6120B - Opt. 05 - Digital IQ Output and 500 MHz Analog IF Output
- RSA6120B - Opt. 10 - AM/FM/PM Modulation and Audio Measurements
- RSA6120B - Opt. 11 - Phase Noise and Jitter Measurement
- RSA6120B - Opt. 12 - Settling Time Measurements (Frequency and Phase)
- RSA6120B - Opt. 20 - Advanced Signal Analysis (including pulse measurements)
- RSA6120B - Opt. 21 - General Purpose Digital Modulation Analysis
- RSA6120B - Opt. 22 - Flexible OFDM
- RSA6120B - Opt. 51 - Preamp, 100 kHz - 20 GHz, 30 dB Gain
- RSA6120B - Opt. 52 - Frequency Mask Trigger
- RSA6120B - Opt. 53 - Memory Extension, 4 GB Total Acquisition Memory
- RSA6120B - Opt. 56 - Removable SSHD (160 GB), incompatible with Option 57, 59
- RSA6120B - Opt. 57 - CD/DVD-RW and Fixed Internal HDD (160 GB), incompatible with Option 56, 59
- RSA6120B - Opt. 59 - Internal HDD (160 GB), incompatible with Option 56, 57
- RSA6120B - Opt. 110 - 110 MHz Capture BW
- RSA6120B - Opt. RSA56KR - Rackmount
- RSA6120B - Opt. A0 - North America power cord
- RSA6120B - Opt. A1 - Universal Euro power cord
- RSA6120B - Opt. A2 - United Kingdom power cord
- RSA6120B - Opt. A3 - Australia power cord
- RSA6120B - Opt. A4 - 240 V, North America power cord
- RSA6120B - Opt. A5 - Switzerland power cord
- RSA6120B - Opt. A6 - Japan power cord
- RSA6120B - Opt. A10 - China power cord
- RSA6120B - Opt. A11 - India power cord
- RSA6120B - Opt. A12 - Brazil power cord
- RSA6120B - Opt. A99 - No power cord
- RSA6120B - Opt. C3 - Calibration Service 3 Years
- RSA6120B - Opt. C5 - Calibration Service 5 Years
- RSA6120B - Opt. D1 - Calibration Data Report
- RSA6120B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- RSA6120B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- RSA6120B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- RSA6120B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- RSA6120B - Opt. R3 - Repair Service 3 Years
- RSA6120B - Opt. R5 - Repair Service 5 Years
- RSA6120B - Opt. CA1 - Single Calibration or Functional Verification
- RSA6120B - Opt. L0 - English Manual
- RSA6120B - Opt. L5 - Japanese Manual
- RSA6120B - Opt. L7 - Simplified Chinese Manual
- RSA6120B - Opt. L10 - Russian Manual
- RSA6120B - Opt. L99 - No Manual
| Model | RSA6120B |
|---|

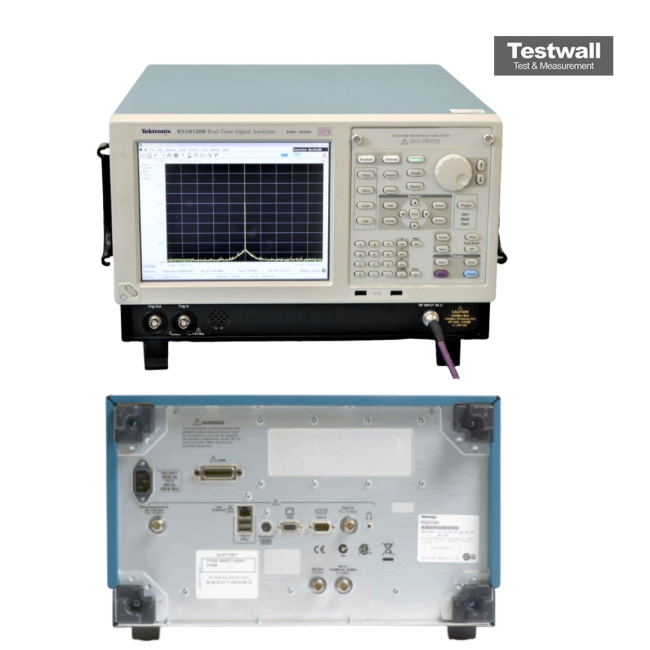

The Tektronix RSA6120B integrates a high-performance spectrum analyzer, a wideband vector signal analyzer, and a real-time spectrum analyzer with advanced trigger-capture-analyze capabilities. It features a frequency range of 9 kHz to 20 GHz, 20 dBm TOI, and -151 dBm/Hz DANL at 2 GHz, delivering the dynamic range needed for precise spectrum analysis. Its DPX® technology offers real-time transient display with a 3.7 μs event duration, revolutionizing signal detection.
Ideal for identifying design faults, the RSA6120B allows up to 7.15 s acquisitions at 110 MHz bandwidth, supports MATLAB™ file storage, and provides both time and frequency domain triggering for advanced diagnostics.
Testwall can supply the used Tektronix RSA6120B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA6120B.
