Tektronix RTPA2A
Real-time Probe Adapter
TPA (Tektronix Probing Architecture) Differential Probe Adapter Probe Type
Tektronix Real-Time Spectrum Analyzers (RSA Series) Compatible Instruments
SMA Input Connector Type
2 Number of Channels
Up to 2.5 GHz Bandwidth
| Attribute | Value |
|---|---|
| Probe Type | TPA (Tektronix Probing Architecture) Differential Probe Adapter |
| Compatible Instruments | Tektronix Real-Time Spectrum Analyzers (RSA Series) |
| Input Connector Type | SMA |
| Number of Channels | 2 |
| Bandwidth | Up to 2.5 GHz |
| Input Impedance | 50 Ohms |
| Dynamic Range | Compatible with wide dynamic range real-time spectrum analysis measurements |
| Interface | TekConnect Interface for direct connection to compatible Tektronix instruments |
| Application | RF and microwave signal probing, differential signal measurement |
| Power Supply | Powered through TekConnect interface (no external power required) |
Tektronix RTPA2A Options:
- RTPA2A - L0 - English user manual
- RTPA2A - L5 - Japanese user manual
- RTPA2A - A0 - North America power plug (115 V, 60 Hz)
- RTPA2A - A1 - Universal Euro power plug (220 V, 50 Hz)
- RTPA2A - A2 - United Kingdom power plug (240 V, 50 Hz)
- RTPA2A - A3 - Australia power plug (240 V, 50 Hz)
- RTPA2A - A4 - North America power plug (240 V, 50 Hz)
- RTPA2A - A5 - Switzerland power plug (220 V, 50 Hz)
- RTPA2A - A6 - Japan power plug (100 V, 50/60 Hz)
- RTPA2A - A10 - China power plug (50 Hz)
- RTPA2A - A99 - No power cord
- RTPA2A - R3 - Repair Service 3 Years (including warranty)
- RTPA2A - R5 - Repair Service 5 Years (including warranty)
| Model | RTPA2A |
|---|

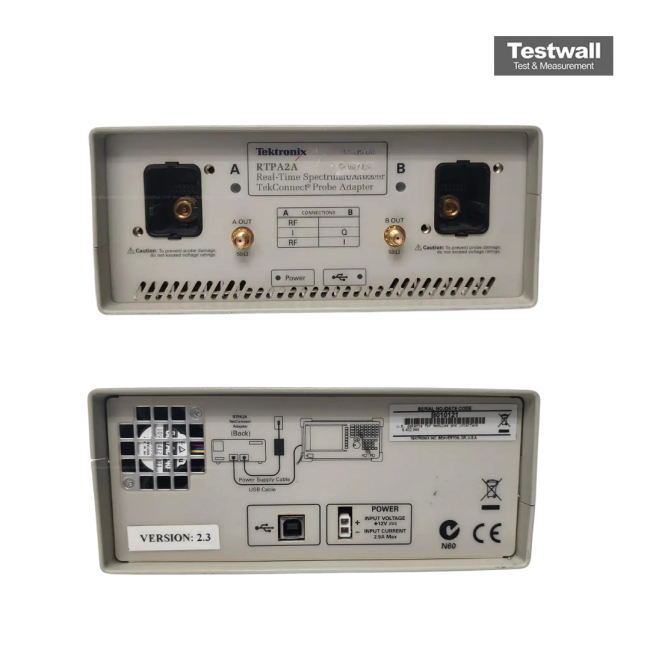

The Tektronix RTPA2A Real-time Probe Adapter interfaces P7000 Series active and differential probes with real-time spectrum analyzers, enabling high-fidelity signal measurements on SMD pins and compact circuits.
It supports two probes with external power and automates scale adjustments via USB for attenuation compensation. Ideal for RF troubleshooting and EMI analysis on high-speed digital designs.
Testwall can supply the used Tektronix RTPA2A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RTPA2A.
