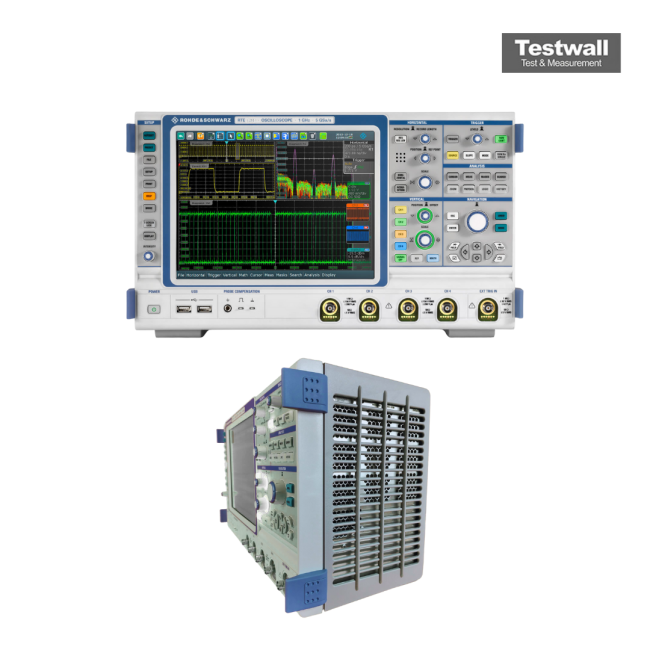

Rohde & Schwarz RTE1034 Digital Oscilloscope
350 MHz Bandwidth
4 Number of Channels
5 GSa/s Sample Rate
50 Mpts (standard), upgradeable to 200 Mpts Memory Depth
10-bit (up to 16-bit with high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GSa/s |
| Memory Depth | 50 Mpts (standard), upgradeable to 200 Mpts |
| Vertical Resolution | 10-bit (up to 16-bit with high-resolution mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Time Base Range | 1 ns/div to 10,000 s/div |
| Connectivity & Interfaces | USB, LAN (LXI), HDMI, optional GPIB |
Rohde & Schwarz RTE1034 Digital Oscilloscope Options:
- RTE1034 - RTE-B1 - Mixed Signal Option, 400 MHz, 5 Gsample/s, 16 channels, 100 Msample/channel
- RTE1034 - RTE-B10 - GPIB Interface
- RTE1034 - RTE-B18 - Replacement SSD Hard Disk, incl. firmware
- RTE1034 - RTE-B19 - Replacement Hard Disk, incl. firmware
- RTE1034 - RTE-B101 - Memory Upgrade, 20 Msample per channel
- RTE1034 - RTE-B102 - Memory Upgrade, 50 Msample per channel
- RTE1034 - RTE-B204 - Upgrade of RTE1032/4 oscilloscopes to 500 MHz bandwidth, incl. calibration
- RTE1034 - RTE-B205 - Upgrade of RTE1032/4 oscilloscopes to 1 GHz bandwidth, incl. calibration
- RTE1034 - RTE-K1 - I2C/SPI Triggering and Decoding
- RTE1034 - RTE-K2 - UART/RS-232 Triggering and Decoding
- RTE1034 - RTE-K3 - CAN/LIN Triggering and Decoding
- RTE1034 - RTE-K4 - FlexRay™ Triggering and Decoding
- RTE1034 - RTE-K5 - I²S Triggering and Decoding
- RTE1034 - RTE-K6 - MIL-STD-1553 Triggering and Decoding
- RTE1034 - RTE-K7 - ARINC 429 Triggering and Decoding
- RTE1034 - RTE-K31 - Power Analysis
| Model | RTE1034 |
|---|
The Rohde & Schwarz RTE1034 Digital Oscilloscope offers 4 channels, up to 2 GHz bandwidth, and 5 GS/s sampling rate, with an optional memory depth expansion up to 200 MSA for advanced diagnostics
It supports MSO with 16 digital channels, high-resolution mode with 16-bit vertical resolution, and >1,000,000 wfms/sec update rate for fault detection in real time
Testwall can supply the used Rohde & Schwarz RTE1034 Digital Oscilloscope, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTE1034 Digital Oscilloscope.
