Tektronix SD24
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Rise Time | 95 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Dynamic Range | ±1 V |
| Sensitivity Range | 10 mV/div to 200 mV/div |
| Maximum Input Voltage | ±2 V (DC + Peak AC) |
| Connector Type | SMA |
| Compatible Mainframe | Tektronix 11000 Series, CSA803 Series |
| Module Type | Dual Sampling Head Plugin Module |
| Model | SD24 |
|---|

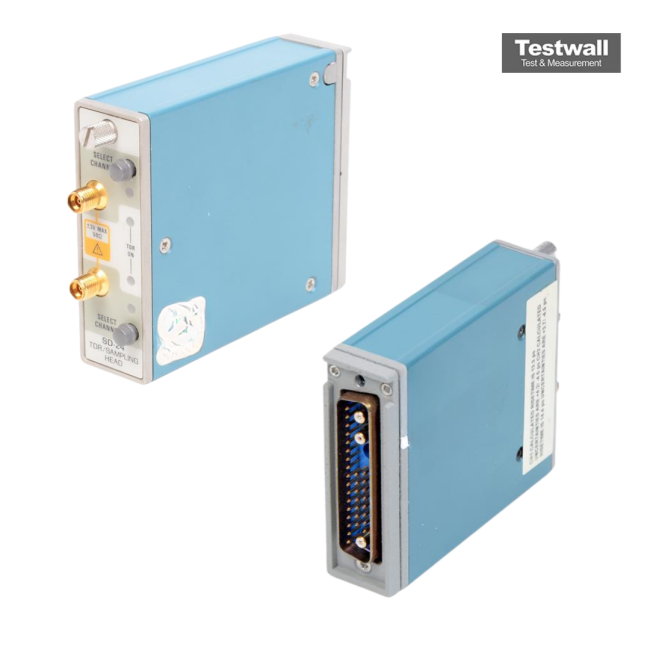

The Tektronix SD-24 is a dual-channel TDR/Sampling Head designed for use with CSA803C and 11801C Sampling Oscilloscopes, offering exceptional signal fidelity with a 20 GHz bandwidth and 17.5 ps rise time. Its two channels enable differential and common-mode testing with selectable step polarity and 35 ps reflected rise time. The SD-24’s architecture supports fast-rise signal generation and advanced system characterization.
Ideal for TDR applications and crosstalk analysis, the SD-24 uses step signals to evaluate transmission lines. Integration with filter functions of compatible oscilloscopes allows for system profiling at various speeds.
Testwall can supply the used Tektronix SD-24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SD-24.
