Tektronix SPECMON6
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 6 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical) at 1 GHz with preamplifier enabled |
| Phase Noise | -98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (in 1-3-10 sequence) |
| Amplitude Accuracy | ±0.5 dB (typical) at 50 MHz reference frequency |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) continuous, DC to 6 GHz |
| Dynamic Range | Up to 78 dB (spurious-free dynamic range, typical) |
| Display | 10.4-inch color LCD touchscreen, 1024 x 768 resolution |
| Connectivity | USB, LAN (Ethernet), GPIB (optional); supports SCPI command set |
| Model | SPECMON6 |
|---|

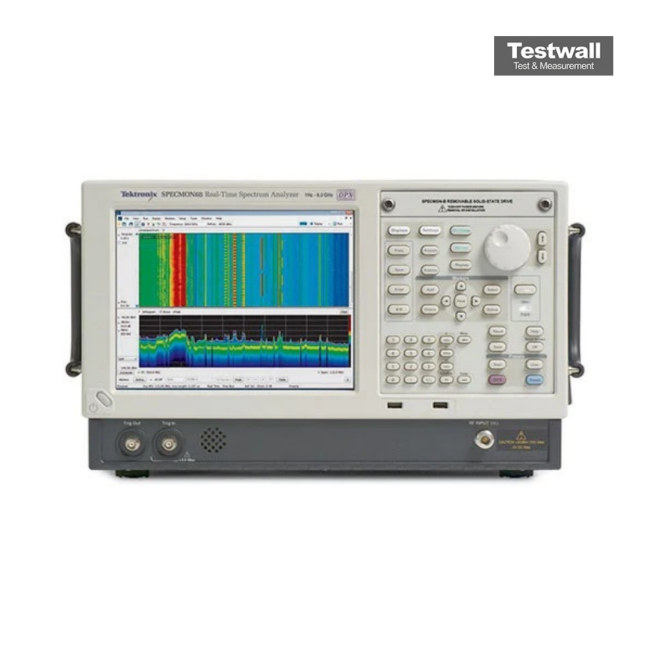

The Tektronix SPECMON6 Real-Time Signal Analyzer offers a frequency range of 1 Hz to 6.2 GHz with up to 110 MHz real-time bandwidth. Featuring Swept DPX™ and advanced triggers like Frequency Mask and DPX Density, it delivers 100% POI for signals as brief as 3.7 μs. Integrated pulse analysis, real-time IQ streaming, and built-in GPS mapping boost performance.
Ideal for spectrum management and signal demodulation, it supports AM/FM and OFDM analysis, field strength, EMI tests, and signal detection across time, frequency, and modulation domains.
Testwall can supply the used Tektronix SPECMON6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SPECMON6.
