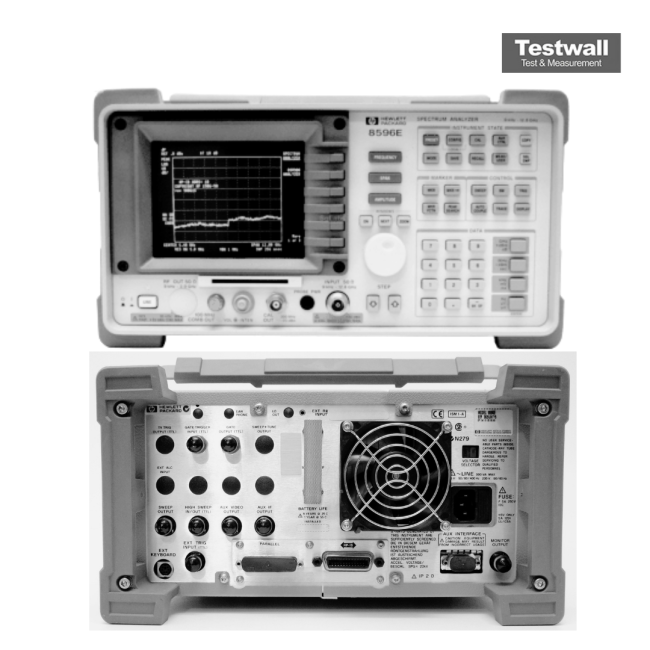

Keysight (Agilent) 8596E
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 12.8 GHz |
| Displayed Average Noise Level (DANL) | -116 dBm (1 GHz, 0 dB attenuation, 10 Hz RBW) |
| Amplitude Accuracy | ±0.5 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 5 MHz in 1-3-10 steps |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Dynamic Range | >90 dB |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Video Bandwidth (VBW) | 1 Hz to 3 MHz |
| Display | 8.3-inch color CRT, 600 x 400 pixel resolution |
Keysight (Agilent) 8596E 12.8GHz Spectrum Analyser Options:
- 8596E - 004 - Precision Frequency Reference
- 8596E - 009 - Lo And Sweep+Tune Outputs On Rear Panel
- 8596E - 010 - 50-Ohm, 9KHZ-2.9GHZ Tracking Generator
- 8596E - 012 - Dect Source
- 8596E - 021 - Gpib Interface
- 8596E - 023 - Rs-232 Interface
- 8596E - 040 - Front Panel Protective Cover W/ Storage
- 8596E - 041 - Gpib And Parallel Interfaces
- 8596E - 043 - Rs-232 And Parallel Interfaces
- 8596E - 050 - Improved Amplitude Accuracy For Nadc/Pcs
- 8596E - 051 - Improved Amplitude Accuracy For Pdc
- 8596E - 052 - Improved Amplitude Accuracy For Phs Band
- 8596E - 053 - Improved Amplitude Accuracy For Cdma
- 8596E - 101 - Fast Time-Domain Sweeps
- 8596E - 102 - Am/Fm Demod W/ Speaker & Tv Sync Trigger
- 8596E - 103 - Quasi-Peak Detector, Am/Fm Demod W/ Spkr
- 8596E - 105 - Time-Gated Spectrum Analysis
- 8596E - 107 - Tv Receiver/Video Tester
- 8596E - 111 - Group Delay Measurement Card
- 8596E - 112 - Dect Demodulator Card
- 8596E - 119 - Noise Figure Card
- 8596E - 130 - Narrow Resolution Bandwidths
- 8596E - 140 - Narrow Res Bw & Precision Frequency Ref.
- 8596E - 151 - Digital Demod Down Converter/Fast Adc
- 8596E - 160 - Mobile Comm F/W & Dsp For Opt. 151 Hw
- 8596E - 163 - Gsm/Dcs Dsp F/W Board For Option 151 Hw
- 8596E - 180 - Tv Picture On Screen
- 8596E - 301 - Tv Sync, Fast Time-Domain Sweeps, Am/Fm
- 8596E - 711 - 50/75-Ohm Matching Pad With Dc Block
- 8596E - 908 - Rackmount (Without Handles)
- 8596E - B70 - Benchlink Spectrum Analyzer S/W
- 8596E - BD0 - Code Division Multiple Access
- 8596E - BD1 - Global System For Mobile Communication
- 8596E - BD2 - North American Digital Cellular System
- 8596E - BD3 - Pacific Digital Cellular System
- 8596E - BD4 - Personal Handyphone System
- 8596E - E67 - Dect Ordering Convenience Package
- 8596E - J62 - Improved Amplitude Accuracy In Gsm900 Band Absolute: 卤1.0 Db (1850 To 1990 MHZ)
- 8596E - J63 - Improved Amplitude Accuracy In Dcs1800 Band Absolute: 卤1.0 Db (1710 To 1880 MHZ)
- 8596E - J66 - Improved Amplitude Accuracy In Pcs1900 Band Absolute: 卤1.0 Db (1850 To 1990 MHZ)
| Model | 8596E |
|---|
The Keysight (Agilent) 8596E Spectrum Analyzer covers a frequency range from 9kHz to 12.8GHz, offering exceptional dynamic range with a -112dBm noise floor and RBW from 1kHz to 3MHz (optional down to 30Hz). It includes customizable measurement personalities, a cardcage for additional circuit cards, internal memory, and printer/plotter output interfaces. Enhanced features include low phase noise, advanced dynamic range, and flexible display windows.
Ideal for RF, microwave, and digital applications, this analyzer simplifies measurements with automatic calibration, one-button features, and software integration via BenchLink for streamlined data capture and documentation.
Testwall can supply the used Keysight (Agilent) 8596E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8596E.
