Tektronix SPG271
| Attribute | Value |
|---|---|
| Output Standards | NTSC, PAL, SECAM |
| Number of Outputs | 10 outputs (analog and digital) |
| Digital Video Output | Serial Digital Interface (SDI) compliant with SMPTE 259M |
| Analog Video Output | Composite, Component (Y, Pb, Pr), and Black Burst signals |
| Reference Signal | Black Burst and Tri-Level Sync reference signal generation |
| Timing Control | Full horizontal and vertical timing adjustments for synchronization |
| Signal Formats | Supports SD (Standard Definition) video signal formats |
| Power Requirements | 100–240 VAC, 50/60 Hz, universal power supply |
| Interface/Connectivity | RS-232 and GPI (General Purpose Interface) for remote control |
| Form Factor | 1RU (1 Rack Unit) half-rack mountable chassis |
Tektronix SPG271 Options:
- SPG271 - Option 01 - Additional Output: Color Bars (75% and 100% full field), Phasing within 2° of primary color bar output, Character Identification (12 characters, 7x9 matrix), Audio Tone (0 to +8 dBu, 500 Hz or 1 kHz, <0.01% distortion)
| Model | SPG271 |
|---|

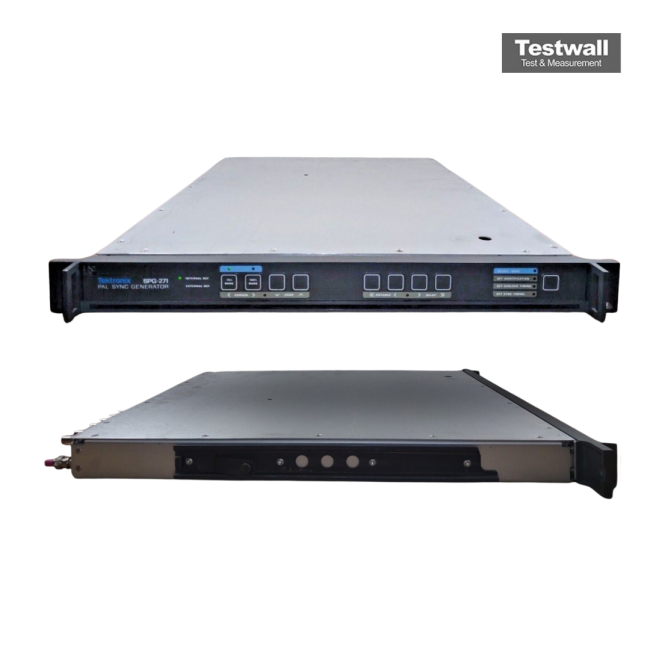

The Tektronix SPG271 is a high-precision digital PAL sync generator designed for standard-definition video systems. It employs a 12-bit DAC to ensure consistent timing and precise chroma/luma alignment, offering stable digital composite PAL outputs. The unit supports color-bar and black-burst outputs, complete with color frame identification pulses, making it ideal for professional broadcasting environments.
This sync generator can operate as a master or a genlocked slave, maintaining accurate subcarrier phasing. Its rugged 1.75″ half-rack chassis ensures durability, while robust digital genlock capabilities enhance reliability.
Testwall can supply the used Tektronix SPG271, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SPG271.
