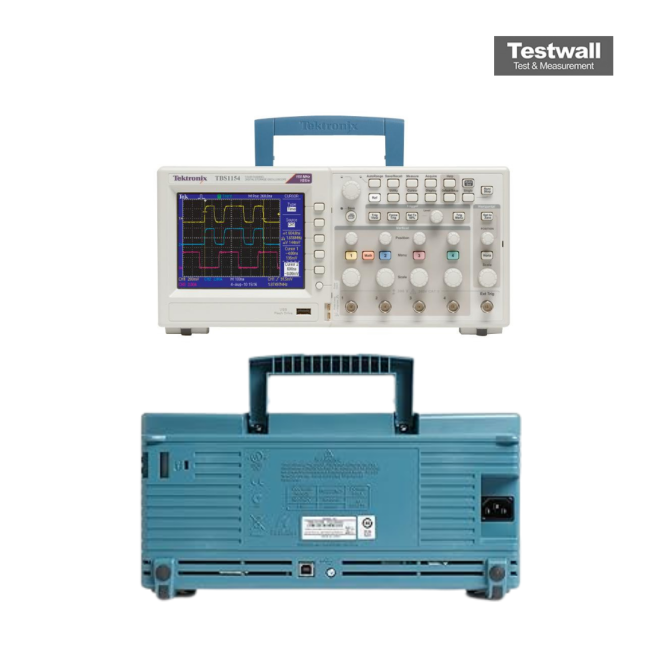

Tektronix TBS1154
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Number of Channels | 4 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 7-inch color TFT LCD, WVGA (800 x 480) |
| Connectivity | USB 2.0 Host and Device ports |
| Automatic Measurements | 34 automated measurements |
Tektronix TBS1154 Options:
- TBS1154 - L0 - English (front-panel overlay on instrument)
- TBS1154 - L1 - French (front-panel overlay)
- TBS1154 - L2 - Italian (front-panel overlay)
- TBS1154 - L3 - German (front-panel overlay)
- TBS1154 - L4 - Spanish (front-panel overlay)
- TBS1154 - L5 - Japanese (front-panel overlay)
- TBS1154 - L6 - Portuguese (front-panel overlay)
- TBS1154 - L7 - Simple Chinese (front-panel overlay)
- TBS1154 - L8 - Standard Chinese (front-panel overlay)
- TBS1154 - L9 - Korean (front-panel overlay)
- TBS1154 - L10 - Russian (front-panel overlay)
- TBS1154 - A0 - North America power plug (115 V, 60 Hz)
- TBS1154 - A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1154 - A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1154 - A3 - Australia power plug (240 V, 50 Hz)
- TBS1154 - A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1154 - A6 - Japan power plug (100 V, 50/60 Hz)
- TBS1154 - A10 - China power plug (50 Hz)
- TBS1154 - A11 - India power plug (50 Hz)
- TBS1154 - A12 - Brazil power plug (60 Hz)
- TBS1154 - A99 - No power cord
- TBS1154 - D1 - Calibration Data Report
| Model | TBS1154 |
|---|
The Tektronix TBS1154 Oscilloscope delivers 150 MHz bandwidth, 1 GS/s sampling rate, and 4 channels with 2.5K record length per channel. It includes USB connectivity, 16 automated measurements, FFT analysis, advanced triggering, and built-in limit testing in a compact and lightweight design.
Ideal for education, testing, and design verification, it supports real-time sampling on all channels, auto-ranging, probe check, and multi-language interface for efficient analysis and logging.
Testwall can supply the used Tektronix TBS1154, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TBS1154.
