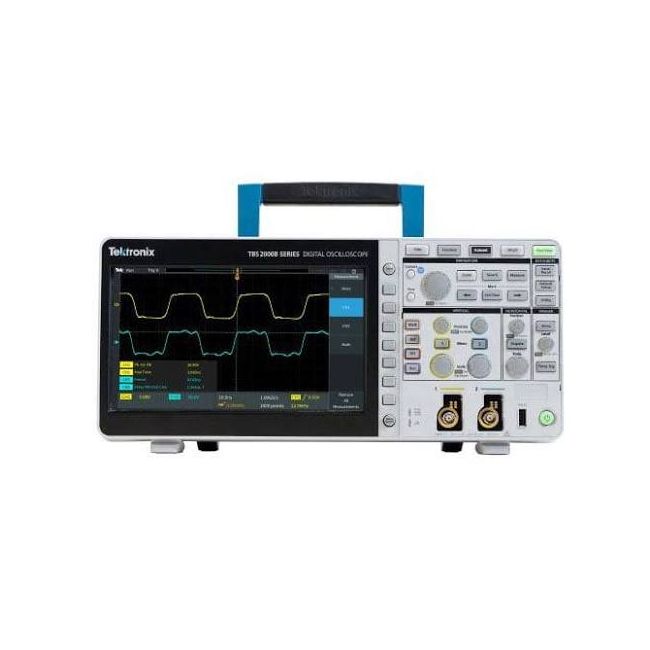

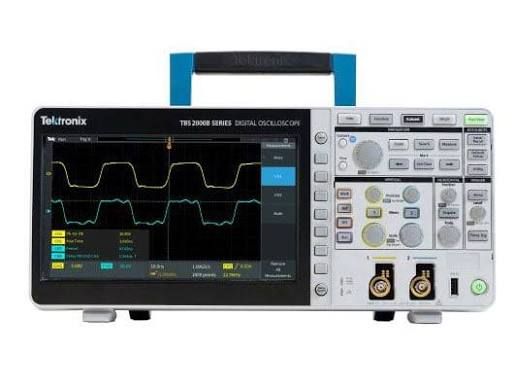

Tektronix TBS2000B
The Tektronix TBS2000B is an entry-level digital storage oscilloscope built for classroom instruction and everyday bench testing, offering a bigger display and faster performance than its predecessor.
Key specifications:
- Channels: Available in 2- or 4-channel models
- Bandwidth: Ranges from 70 MHz to 200 MHz (field-upgradeable)
- Sample rate: Up to 2 GS/s
- Record length: 5M points
- Display: 9-inch WVGA screen with 15 horizontal divisions for viewing more of the signal at once
- Measurements: 32 automated measurements plus on-waveform cursor readouts with search and mark features
- Connectivity: Two USB host ports, 100BaseT Ethernet, and optional Wi-Fi via USB dongle
- Probing: TekVPI probe interface supports active, differential, and current probes with automatic scaling
Its education-friendly features, such as the ability to disable autoset and automated measurements for teaching fundamentals, along with a 5-year warranty, make it well suited for both learning environments and everyday troubleshooting.
More Information
| Model | TBS2000B |
|---|
