Tektronix TCP0020
| Attribute | Value |
|---|---|
| Bandwidth | 20 MHz |
| Current Range | 20 A peak AC/DC |
| Sensitivity | 100 mA/div minimum |
| Maximum Conductor Size | 5 mm diameter |
| Output Voltage | 100 mV/A |
| DC Accuracy | ±2% typical |
| Power Supply | Powered via TEKPROBE interface (compatible oscilloscope) |
| Compatible Interfaces | TEKPROBE Level II |
| Operating Temperature | 0°C to +50°C |
| Probe Type | AC/DC Current Probe |
Tektronix TCP0020 Options:
- TCP0020 - C3 - Calibration Service 3 Years
- TCP0020 - C5 - Calibration Service 5 Years
- TCP0020 - D1 - Calibration Data Report
- TCP0020 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TCP0020 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TCP0020 - R3 - Repair Service 3 Years
- TCP0020 - R5 - Repair Service 5 Years
| Model | TCP0020 |
|---|

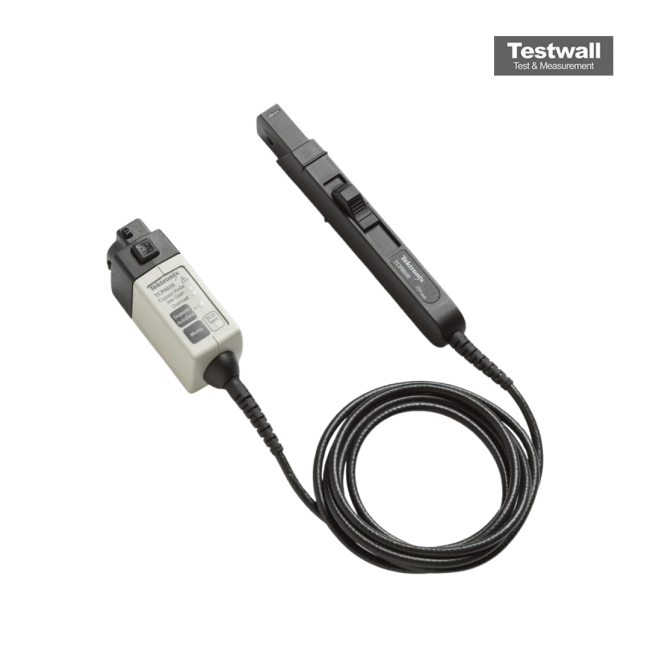

The Tektronix TCP0020 Current Probe delivers accurate AC/DC current measurements from 10 mA up to 20 ARMS with over 50 MHz bandwidth. It connects directly to oscilloscopes via TekVPI™, supports auto-scaling, and features low noise, low drift, and one-button degauss and AutoZero for easy operation.
Ideal for precision current testing in circuits with peak pulse currents up to 100 A. Offers high accuracy (DC gain error <1%) and easy connection through split-core jaw design.
Testwall can supply the used Tektronix TCP0020, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP0020.
