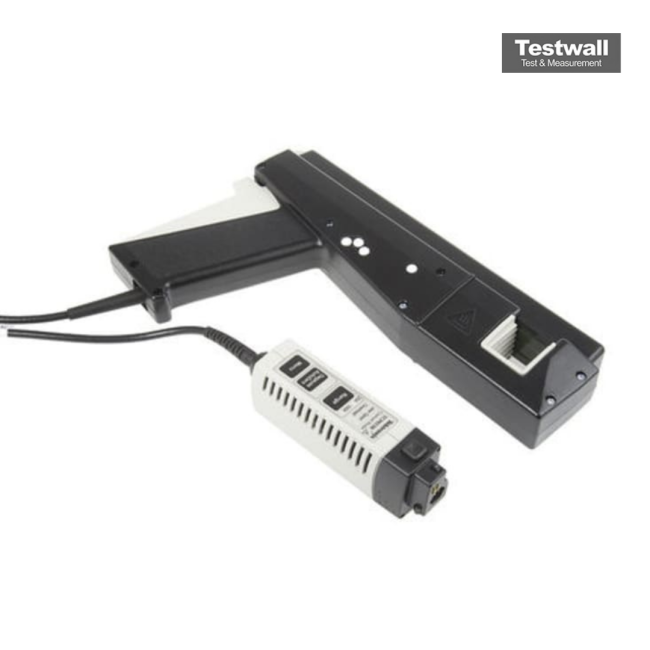

Tektronix TCP0150
| Attribute | Value |
|---|---|
| Current Range | 150 A RMS / 500 A Peak |
| Bandwidth | DC to 20 MHz |
| Sensitivity | 10 mA RMS minimum |
| Maximum Conductor Size | 10 mm diameter |
| Output Sensitivity | 10 mV/A |
| Rise Time | ≤ 17.5 ns |
| Maximum Input Voltage | 1000 V CAT II |
| Power Requirement | Powered via TekVPI probe interface (no external power required) |
| Connector Interface | TekVPI (Tektronix Versatile Probe Interface) |
| Operating Temperature | 0°C to +50°C |
| Model | TCP0150 |
|---|
The Tektronix TCP0150 is a high-performance AC/DC current probe offering 20 MHz bandwidth and 150 A RMS maximum capability. With selectable 25 A and 150 A ranges and direct TekVPI™ interface for Tektronix DPO4000, MSO4000, and DPO7000 Series oscilloscopes, it ensures accurate and reliable measurements. Key features include low current detection down to 5 mA, low noise, automatic scaling, and GPIB control support.
This probe is ideal for testing power supplies, semiconductor devices, inverters, electronic ballasts, and more. Its split-core construction enables simple connection and accurate diagnostics for dynamic signals.
Testwall can supply the used Tektronix TCP0150, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP0150.
