Tektronix TDS3AAM
| Attribute | Value |
|---|---|
| Compatible Series | TDS3000 Series Oscilloscopes |
| Module Type | Advanced Analysis Application Module |
| Measurement Functions | Amplitude, Area, Burst Width, Cycle Area, Delay, Fall Time, Frequency, High, Low, Maximum, Minimum, Mean, Negative Duty Cycle, Negative Overshoot, Negative Width, Period, Phase, Positive Duty Cycle, Positive Overshoot, Positive Width, Rise Time, RMS, Cycle RMS, Peak-to-Peak |
| Waveform Math Operations | Advanced FFT, Waveform Integration, Waveform Differentiation |
| FFT Window Types | Rectangular, Hanning, Hamming, Blackman-Harris, Flattop |
| Limit Testing | Pass/Fail limit testing with hardcopy output on failure |
| Waveform Histograms | Horizontal and Vertical histogram measurements supported |
| Interface | Plug-in application module card slot (front panel) |
| Power Requirement | Powered directly by the host oscilloscope (no external power required) |
| Form Factor | Compact plug-in module card |
| Model | TDS3AAM |
|---|

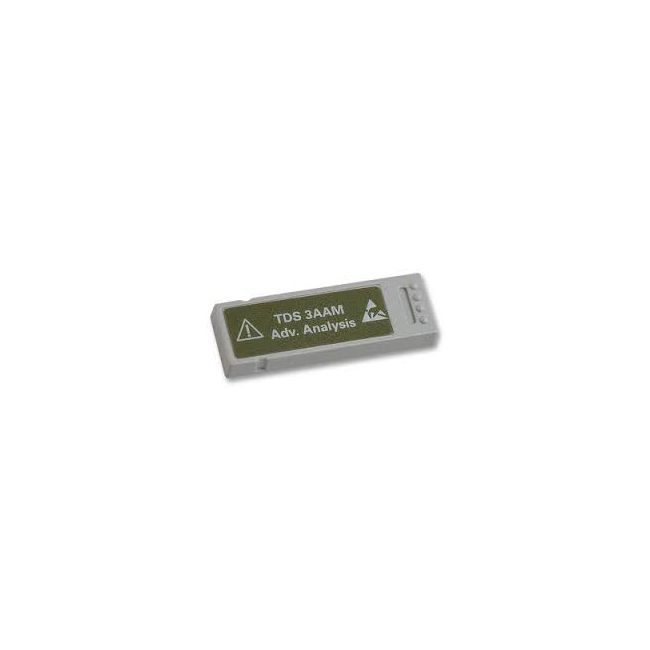

The Tektronix TDS3AAM is an Advanced Analysis Module for TDS3000C Series oscilloscopes. It enhances math functionality with arbitrary math expressions, waveform area/cycle area calculations, measurement statistics, and XY waveform cursors for detailed signal analysis.
Ideal for high-precision waveform evaluation, the module enables DPO math operations, supports up to two user-defined variables, and provides min/max or mean/standard deviation statistics for automated measurements.
Testwall can supply the used Tektronix TDS3AAM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3AAM.
