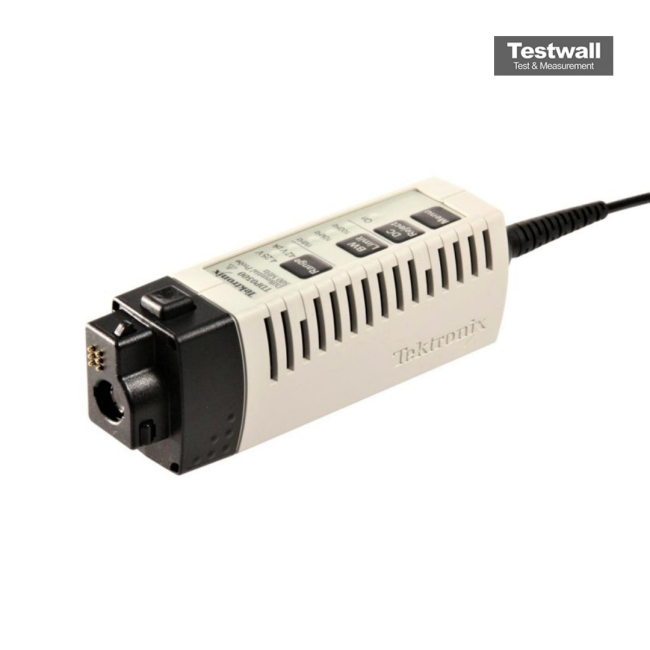

Tektronix TDP0500

ManufacturerTektronix
ModelTDP0500
ProductHigh Voltage Differential Probe, 500 MHz
TypeUsed



Tektronix TCPA400

Tektronix TCPA400

Tektronix TDP1000

Tektronix TDP1000

Get Quote
SKU
143681
Tektronix TDP0500 Diffeial Probe, 500 MHzThe Tektronix TDP0500 High-voltage Diffeial Probe is a versatile and easy to use probe that provides high-speed electrical and mechanical performance needed for Switch Mode Power Supply, CAN/LIN Bus, and for high-speed digital system designs. The Tektronix TDP0500 Probe is designed specifically for use with, and direct connection to, Tektronix Oscilloscopes with either the TekVPI™ probe interface, or TekProbe BNC Interface.Features and Specifications of the TDP0500 Diffeial Probe include:
  • Features:
    • Versatile DUT Connectivity:
      • Small compact probe head for probing small geometry circuit elements
      • Straight pin, square pin, solder down, variable pitch standard accessories
      • Robust design for reliability
    • Provides high-speed signal acquisition and measurement fidelity with its:
      • Outstanding electrical performance
      • Versatile device-under-test connectivity
      • Ease of use
    • Connects directly to Oscilloscope with the TekVPI™ probe interface
    • Provides automatic units scaling and readout on the Oscilloscope display
    • Embeds the probe characteristics within the Oscilloscope
    • Easy access to scope-displayed probe menu:
      • for probe setup control
      • for operating status information
    • Remote GPIB/USB probe control through the Oscilloscope
    • AutoZero:  Zeros out output offset
    • Applications:
      • High-speed switch mode power supply design
      • CAN/LIN bus design
      • High-speed digital design
      • Digital design and characterization
      • Manufacturing engineering and test
      • Research and development
  • Specifications:
    • Probe Bandwidth:  500 MHz
    • Probe Attenuation:  5X, 50X
    • Probe Rise Time:
    • Diffeial Input Capacitance:
    • Diffeial Input Resistance:  1 MΩ
    • CMRR:
      • >55 dB at 30 kHz
      • >50 dB at 1 MHz
      • >18 dB at 250 MHz (warranted at 50X attenuation)
    • Sensitivity /Noise Level:
      • 2 mVRMS (5X attenuation)
      • 1 mVRMS (50X attenuation) referred to the probe output
      • 10 mVRMS (5X attenuation)
      • 50 mVRMS (50X attenuation) referred to the probe input
    • Diffeial Mode Input Voltage:  ±42 V (DC + pk AC); 30 VRMS
    • Common Mode Input Voltage:  ±35 V (DC + pk AC); 25 VRMS
    • Input Offset Range:  ±42 V (5X or 50X attenuation)
    • Max Input Voltage (Nondestruct):  ±100 V (DC + pk AC)
    • Selectable Bandwidth Filter Limits:  100 Hz, 10 kHz, 1 MHz, Full
    • DC Reject:
      • 0.4 Hz (5X)
      • 4 Hz (50X)
    • Gain Accuracy at DC:  ±2%
    • Propagation Delay:  6.5 ns
    • Probe Interface:  TekVPI™ Probe Interface
  • Versatile DUT Connectivity:
    • Small compact probe head for probing small geometry circuit elements
    • Straight pin, square pin, solder down, variable pitch standard accessories
    • Robust design for reliability
  • Provides high-speed signal acquisition and measurement fidelity with its:
    • Outstanding electrical performance
    • Versatile device-under-test connectivity
    • Ease of use
  • Connects directly to Oscilloscope with the TekVPI™ probe interface
  • Provides automatic units scaling and readout on the Oscilloscope display
  • Embeds the probe characteristics within the Oscilloscope
  • Easy access to scope-displayed probe menu:
    • for probe setup control
    • for operating status information
  • Remote GPIB/USB probe control through the Oscilloscope
  • AutoZero:  Zeros out output offset
  • Applications:
    • High-speed switch mode power supply design
    • CAN/LIN bus design
    • High-speed digital design
    • Digital design and characterization
    • Manufacturing engineering and test
    • Research and development
  • Small compact probe head for probing small geometry circuit elements
  • Straight pin, square pin, solder down, variable pitch standard accessories
  • Robust design for reliability
  • Outstanding electrical performance
  • Versatile device-under-test connectivity
  • Ease of use
  • for probe setup control
  • for operating status information
  • High-speed switch mode power supply design
  • CAN/LIN bus design
  • High-speed digital design
  • Digital design and characterization
  • Manufacturing engineering and test
  • Research and development
  • Probe Bandwidth:  500 MHz
  • Probe Attenuation:  5X, 50X
  • Probe Rise Time:
  • Diffeial Input Capacitance:
  • Diffeial Input Resistance:  1 MΩ
  • CMRR:
    • >55 dB at 30 kHz
    • >50 dB at 1 MHz
    • >18 dB at 250 MHz (warranted at 50X attenuation)
  • Sensitivity /Noise Level:
    • 2 mVRMS (5X attenuation)
    • 1 mVRMS (50X attenuation) referred to the probe output
    • 10 mVRMS (5X attenuation)
    • 50 mVRMS (50X attenuation) referred to the probe input
  • Diffeial Mode Input Voltage:  ±42 V (DC + pk AC); 30 VRMS
  • Common Mode Input Voltage:  ±35 V (DC + pk AC); 25 VRMS
  • Input Offset Range:  ±42 V (5X or 50X attenuation)
  • Max Input Voltage (Nondestruct):  ±100 V (DC + pk AC)
  • Selectable Bandwidth Filter Limits:  100 Hz, 10 kHz, 1 MHz, Full
  • DC Reject:
    • 0.4 Hz (5X)
    • 4 Hz (50X)
  • Gain Accuracy at DC:  ±2%
  • Propagation Delay:  6.5 ns
  • Probe Interface:  TekVPI™ Probe Interface
  • >55 dB at 30 kHz
  • >50 dB at 1 MHz
  • >18 dB at 250 MHz (warranted at 50X attenuation)
  • 2 mVRMS (5X attenuation)
  • 1 mVRMS (50X attenuation) referred to the probe output
  • 10 mVRMS (5X attenuation)
  • 50 mVRMS (50X attenuation) referred to the probe input
  • 0.4 Hz (5X)
  • 4 Hz (50X)
  •
