143753

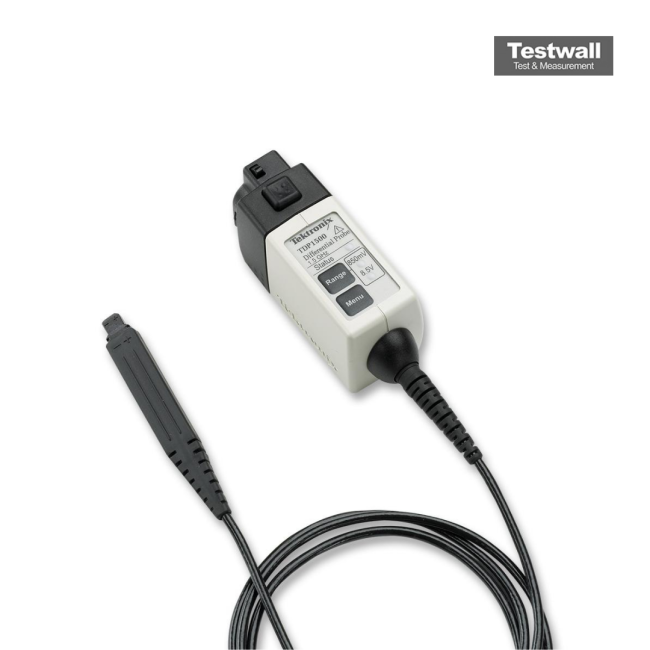

Tektronix TDP1500 Diffeial Probe, 1.5 GHzThe Tektronix TDP1500 Probe is a Diffeial-ended Active probe that provides truer signal reproduction and fidelity for high-frequency measurements. It also provides high-speed electrical and mechanical performance required for today's digital system designs. The Tektronix TDP1500 Probe is designed specifically for use, and direct connection to, Tektronix Oscilloscopes with the TekVPI™ probe interface.Features and Specifications of the TDP1500 Diffeial Probe include: Features: Specifications: Outstanding electrical performance: Versatile mechanical performance: Connects directly to Oscilloscope with the TekVPI™ probe interface Provides automatic units scaling and readout on the Oscilloscope display Embeds the probe characteristics within the Oscilloscope Easy access to probe comp box controls or Oscilloscope probe menu display for: Integrated Scope/Probe System: Applications: Bandwidth that provides accurate measurements for serial and digital applications Excellent common mode rejection that reduces measurement errors in higher common environments Low capacitive and resistive loading: Maintains signal fidelity Reduces DC biasing interactions Compact probe head size for probing small geometry circuit elements DUT attachment accessories enable connection to fine-spaced SMDs Robust design for reliability probe status probe setup control diagnostic information Direct connection to and powered from the TekVPI™ Oscilloscope Interface without the need of an external power supply Single-button Oscilloscope probe menu access Setup and control from comp box or Oscilloscope user interface AutoZero: Zeros out output offset Remote GPIB/USB probe control through the Oscilloscope Design, validation, degugging, and characterization of common high-speed serial bus designs: Signal integrity, jitter, and timing analysis Manufacturing, engineering and test I2C CAN/LIN SPI Serial ATA Ethernet (GbE) USB 2.0 Firewire (1394b) Probe Bandwidth: ≥1.5 GHz warranted Probe Attenuation: 1x, 10x Probe Rise Time: ≤265 ps typical Diffeial Input Capacitance: ≤1 pF Diffeial Input Resistance: 200 kΩ Diffeial Input Dynamic Range: CMRR: Input Offset Range: ±7 V (10x or 1x) Operation Voltage Input Range (Common Mode Input Range): Noise: Max Input Voltage (Nondestruct): ±25 V (DC + pk AC) Propagation Delay: 5.4 ns typical ±8.5 V (10x) (TDP1500) ±850 mV (1x) (TDP1500) >60 dB at 1 MHz >25 dB at 1 GHz ±7 V (1x) ±7 V (10x)
- Outstanding electrical performance:
- Bandwidth that provides accurate measurements for serial and digital applications
- Excellent common mode rejection that reduces measurement errors in higher common environments
- Low capacitive and resistive loading:
- Maintains signal fidelity
- Reduces DC biasing interactions
- Versatile mechanical performance:
- Compact probe head size for probing small geometry circuit elements
- DUT attachment accessories enable connection to fine-spaced SMDs
- Robust design for reliability
- Connects directly to Oscilloscope with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the Oscilloscope display
- Embeds the probe characteristics within the Oscilloscope
- Easy access to probe comp box controls or Oscilloscope probe menu display for:
- probe status
- probe setup control
- diagnostic information
- Integrated Scope/Probe System:
- Direct connection to and powered from the TekVPI™ Oscilloscope Interface without the need of an external power supply
- Single-button Oscilloscope probe menu access
- Setup and control from comp box or Oscilloscope user interface
- AutoZero: Zeros out output offset
- Remote GPIB/USB probe control through the Oscilloscope
- Applications:
- Design, validation, degugging, and characterization of common high-speed serial bus designs:
- I2C
- CAN/LIN
- SPI
- Serial ATA
- Ethernet (GbE)
- USB 2.0
- Firewire (1394b)
- Signal integrity, jitter, and timing analysis
- Manufacturing, engineering and test
- Design, validation, degugging, and characterization of common high-speed serial bus designs:
- Probe Bandwidth: ≥1.5 GHz warranted
- Probe Attenuation: 1x, 10x
- Probe Rise Time: ≤265 ps typical
- Diffeial Input Capacitance: ≤1 pF
- Diffeial Input Resistance: 200 kΩ
- Diffeial Input Dynamic Range:
- ±8.5 V (10x) (TDP1500)
- ±850 mV (1x) (TDP1500)
- CMRR:
- >60 dB at 1 MHz
- >25 dB at 1 GHz
- Input Offset Range: ±7 V (10x or 1x)
- Operation Voltage Input Range (Common Mode Input Range):
- ±7 V (1x)
- ±7 V (10x)
- Noise:
- Max Input Voltage (Nondestruct): ±25 V (DC + pk AC)
- Propagation Delay: 5.4 ns typical
- Bandwidth that provides accurate measurements for serial and digital applications
- Excellent common mode rejection that reduces measurement errors in higher common environments
- Low capacitive and resistive loading:
- Maintains signal fidelity
- Reduces DC biasing interactions
- Compact probe head size for probing small geometry circuit elements
- DUT attachment accessories enable connection to fine-spaced SMDs
- Robust design for reliability
- probe status
- probe setup control
- diagnostic information
- Direct connection to and powered from the TekVPI™ Oscilloscope Interface without the need of an external power supply
- Single-button Oscilloscope probe menu access
- Setup and control from comp box or Oscilloscope user interface
- AutoZero: Zeros out output offset
- Remote GPIB/USB probe control through the Oscilloscope
- Design, validation, degugging, and characterization of common high-speed serial bus designs:
- I2C
- CAN/LIN
- SPI
- Serial ATA
- Ethernet (GbE)
- USB 2.0
- Firewire (1394b)
- Signal integrity, jitter, and timing analysis
- Manufacturing, engineering and test
- Maintains signal fidelity
- Reduces DC biasing interactions
- I2C
- CAN/LIN
- SPI
- Serial ATA
- Ethernet (GbE)
- USB 2.0
- Firewire (1394b)
- ±8.5 V (10x) (TDP1500)
- ±850 mV (1x) (TDP1500)
- >60 dB at 1 MHz
- >25 dB at 1 GHz
- ±7 V (1x)
- ±7 V (10x)
