Tektronix TDP3500
| Attribute | Value |
|---|---|
| Bandwidth | 3.5 GHz |
| Rise Time | 120 ps |
| Input Voltage Range | ±15 V (DC + Peak AC) |
| Attenuation Ratio | 10X |
| Input Impedance | 50 Ω (terminated) |
| Dynamic Range | ±700 mV at probe tip |
| Common Mode Rejection Ratio (CMRR) | >16 dB at 3.5 GHz |
| Cable Length | 1.2 m (approximately 4 ft) |
| Operating Temperature | 0°C to +50°C |
| Compatible Oscilloscopes | Tektronix DPO/DSA/MSO70000 Series and other 50 Ω SMA input oscilloscopes |
Tektronix TDP3500 Options:
- TDP3500 - L0 - English manual
- TDP3500 - L5 - Japanese manual
- TDP3500 - L7 - Simplified Chinese manual
- TDP3500 - C3 - Calibration Service 3 Years
- TDP3500 - C5 - Calibration Service 5 Years
- TDP3500 - D1 - Calibration Data Report
- TDP3500 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TDP3500 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TDP3500 - R3 - Repair Service 3 Years (including warranty)
- TDP3500 - R5 - Repair Service 5 Years (including warranty)
- TDP3500 - SILV900 - Standard warranty extended to 5 years
| Model | TDP3500 |
|---|

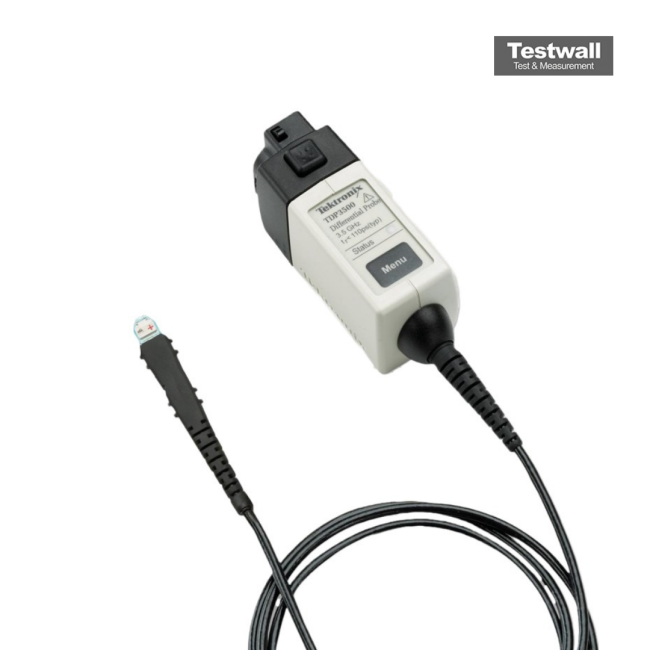

The Tektronix TDP3500 is a high-frequency differential active probe designed for precision signal fidelity. Featuring ultra-low input capacitance and excellent common mode rejection, it minimizes measurement errors even in noisy environments. Its direct TekVPI™ oscilloscope interface requires no external power, and its compact probe head supports small-geometry circuit testing with robust mechanical performance.
Ideal for digital system design, it includes AutoZero, single-button menu access, and automatic scaling with GPIB/USB remote control, ensuring smooth diagnostics and integration.
Testwall can supply the used Tektronix TDP3500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDP3500.
