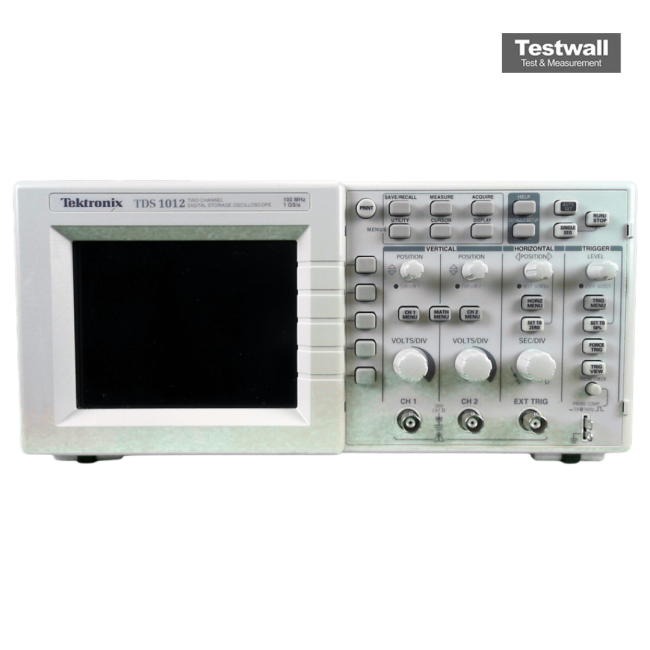

Tektronix TDS1012
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.4 inch color LCD |
| Input Coupling | AC, DC, Ground |
Tektronix TDS1012 Options:
Options available for the Tektronix TDS200 / TDS1000 / TDS2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS1012 - TDS2CM - Communications extension module (GPIB, RS-232, Centronics)
- TDS1012 - TDS2CMA - Communications extension module (GPIB, RS-232, Centronics)
- TDS1012 - TDS2MM - Measurement extension module (FFT, GPIB, RS-232, Centronics)
- TDS1012 - TDS2MEM - Storage memory and communications module (CompactFlash)
The Tektronix TDS1012-77757 offers 100 MHz bandwidth, 1 GS/s sampling rate, and math & storage functions, identical to the base TDS1012 model.
This specific variant may feature firmware upgrades or batch improvements, ideal for educational and light lab applications needing stable digital storage.
Testwall can supply the used Tektronix TDS1012-77757, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS1012-77757.
