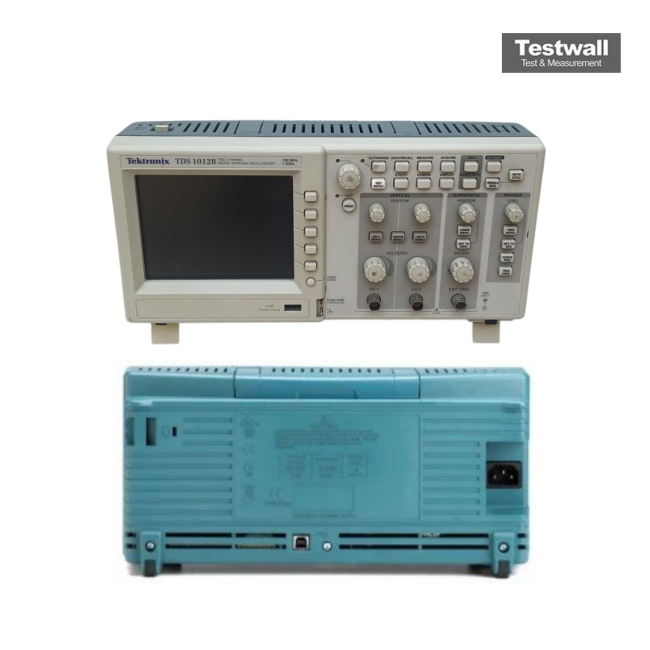

Tektronix TDS1012B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 5.7-inch color LCD |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Maximum Input Voltage | 300 V RMS CAT II |
Tektronix TDS1012B Options:
- TDS1012B - A0 - North America power
- TDS1012B - A1 - Universal Euro power
- TDS1012B - A2 - United Kingdom power
- TDS1012B - A3 - Australia power
- TDS1012B - A5 - Switzerland power
- TDS1012B - A6 - Japan power
- TDS1012B - A10 - China power
- TDS1012B - A11 - India power
- TDS1012B - A99 - No power cord or AC adapter
- TDS1012B - L0 - English manual
- TDS1012B - L1 - French manual
- TDS1012B - L2 - Italian manual
- TDS1012B - L3 - German manual
- TDS1012B - L4 - Spanish manual
- TDS1012B - L5 - Japanese manual
- TDS1012B - L6 - Portuguese manual
- TDS1012B - L7 - Simplified Chinese manual
- TDS1012B - L8 - Standard Chinese manual
- TDS1012B - L9 - Korean manual
- TDS1012B - L10 - Russian manual
- TDS1012B - C3 - Calibration Service 3 years
- TDS1012B - C5 - Calibration Service 5 years
- TDS1012B - D1 - Calibration Data Report
- TDS1012B - D3 - Calibration Data Report 3 years (with Opt. C3)
- TDS1012B - D5 - Calibration Data Report 5 years (with Opt. C5)
- TDS1012B - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
| Model | TDS1012B |
|---|
The Tektronix TDS1012B Digital Storage Oscilloscope features a 100 MHz bandwidth and 1 GS/s real-time sampling rate, delivering unmatched signal fidelity and analysis. Equipped with 2 channels, monochrome LCD, advanced triggering options, and standard FFT, it offers 12 automatic measurements and a consistent record length across all time base settings. Its USB ports enable seamless data transfer and printing, while support software like OpenChoice® and NI SignalExpress® enhances waveform documentation and control.
Ideal for design, education, manufacturing, and service applications, the TDS1012B simplifies operation with analog-style controls, Autoset, and context-sensitive help features.
Testwall can supply the used Tektronix TDS1012B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS1012B.
