Tektronix TDS2002C
| Attribute | Value |
|---|---|
| Bandwidth | 70 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7 in. (144 mm) color LCD |
| Connectivity | USB 2.0 Host and Device ports |
Tektronix TDS2002C Options:
- TDS2002C - L0 - English (front-panel label on instrument)
- TDS2002C - L1 - French (front-panel overlay)
- TDS2002C - L2 - Italian (front-panel overlay)
- TDS2002C - L3 - German (front-panel overlay)
- TDS2002C - L4 - Spanish (front-panel overlay)
- TDS2002C - L5 - Japanese (front-panel overlay)
- TDS2002C - L6 - Portuguese (front-panel overlay)
- TDS2002C - L7 - Simplified Chinese (front-panel overlay)
- TDS2002C - L8 - Traditional Chinese (front-panel overlay)
- TDS2002C - L9 - Korean (front-panel overlay)
- TDS2002C - L10 - Russian (front-panel overlay)
- TDS2002C - A0 - North America power plug (115 V, 60 Hz)
- TDS2002C - A1 - Universal Euro power plug (220 V, 50 Hz)
- TDS2002C - A2 - United Kingdom power plug (240 V, 50 Hz)
- TDS2002C - A3 - Australia power plug (240 V, 50 Hz)
- TDS2002C - A4 - North America power plug (240 V, 50 Hz)
- TDS2002C - A5 - Switzerland power plug (220 V, 50 Hz)
- TDS2002C - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- TDS2002C - A10 - China power plug (50 Hz)
- TDS2002C - A11 - India power plug (50 Hz)
- TDS2002C - A12 - Brazil power plug (60 Hz)
- TDS2002C - A99 - No power cord
- TDS2002C - D1 - Calibration Data Report
| Model | TDS2002C |
|---|

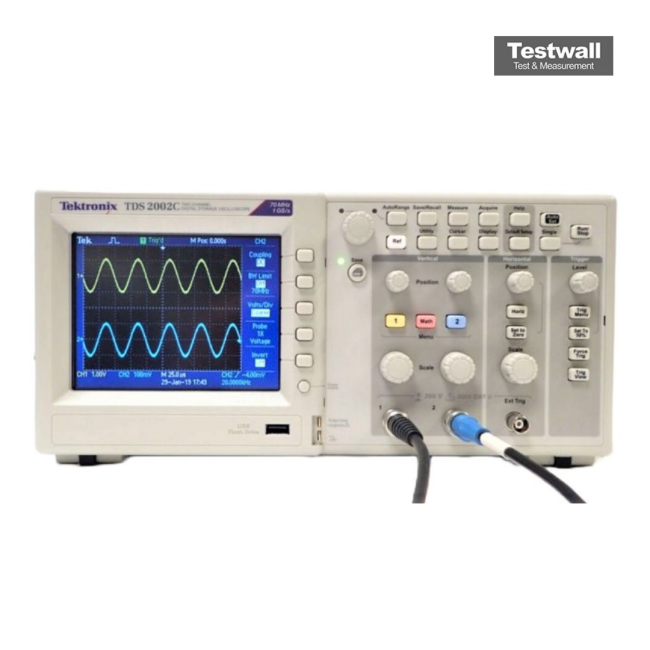

The Tektronix TDS2002C is a 70 MHz, 2-channel digital storage oscilloscope offering 1 GS/s sample rate and 2.5k memory depth. Compact and cost-effective, it includes USB connectivity, 16 automated measurements, data logging, limit testing, and context-sensitive help to support efficient electronic diagnostics and analysis.
Perfect for education, embedded development, and test labs, the TDS2002C offers essential waveform capture performance in a benchtop form factor with Windows-based operation.
Testwall can supply the used Tektronix TDS2002C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2002C.
