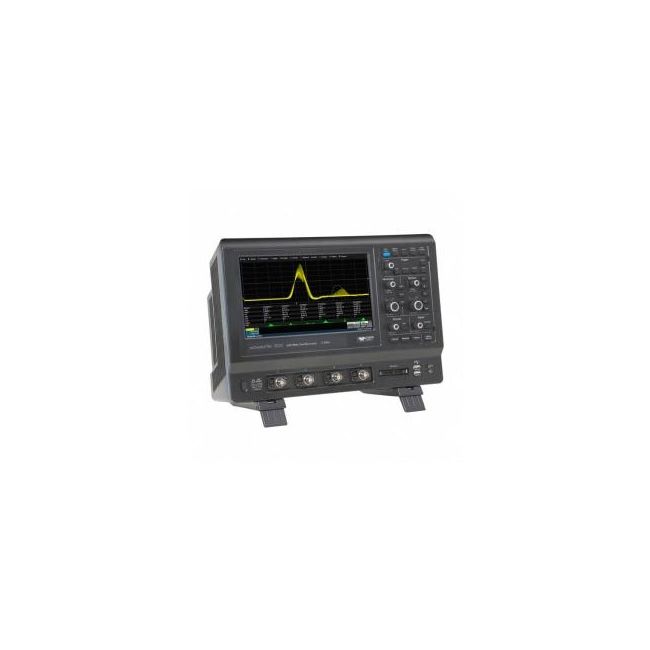

Teladyne LeCroy WAVESURFER 3024
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GS/s (all channels simultaneously) |
| Memory Depth | 10 Mpts/ch |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ || 13 pF |
| Display | 10.1-inch color touchscreen LCD (1024 x 600 resolution) |
| Waveform Update Rate | 130,000 waveforms per second |
| Connectivity | USB Host, USB Device, Ethernet (LAN), HDMI |
| Trigger Types | Edge, Width, Glitch, Pattern, Qualified, UART, SPI, I2C, and more |
Teladyne LeCroy WAVESURFER 3024 Options:
- WAVESURFER 3024 - WS3K-MSO - MSO software option and 16 Channel Digital probe leadset
- WAVESURFER 3024 - WS3K-MSO-LICENSE - MSO License (MS Probe Not Included)
- WAVESURFER 3024 - WS3K-FG - Function Generator Option
- WAVESURFER 3024 - WS3K-AUTO - CAN and LIN Trigger and Decode Option
- WAVESURFER 3024 - WS3K-CAN FDbus TD - CAN FD Trigger and Decode Option
- WAVESURFER 3024 - WS3K-EMB - I2C, SPI, UART and RS-232 Trigger and Decode Option
- WAVESURFER 3024 - WS3K-FlexRaybus TD - FlexRay Trigger and Decode Option
- WAVESURFER 3024 - USB2-GPIB - External GPIB Accessory
- WAVESURFER 3024 - WS3K-SOFTCASE - Soft Carrying Case
- WAVESURFER 3024 - WS3K-RACK - Rack Mount Accessory
- WAVESURFER 3024 - WS3K-FP-GERMAN - German Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-FRENCH - French Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-ITALIAN - Italian Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-SPANISH - Spanish Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-JAPANESE - Japanese Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-KOREAN - Korean Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-CHNES-TR - Chinese (Tr) Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-CHNES-SI - Chinese (Simp) Front Panel Overlay
- WAVESURFER 3024 - WS3K-FP-RUSSIAN - Russian Front Panel Overlay
| Model | WAVESURFER 3024 |
|---|
The Teledyne LeCroy WaveSurfer 3024 delivers 200 MHz bandwidth across four analog channels, with up to 4 GS/s sampling and approximately 10 Mpts memory per channel. It features a ten-inch capacitive touchscreen, MAUI interface, and advanced waveform capture functions including WaveScan, History Mode, protocol tools, and multi-instrument integration.
Ideal for debugging, analysis, and signal monitoring, the Teledyne LeCroy WaveSurfer 3024 offers a compact, ergonomic design and long capture depth for detailed waveform analysis.
Testwall can supply the used Teledyne LeCroy WaveSurfer 3024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WaveSurfer 3024.
