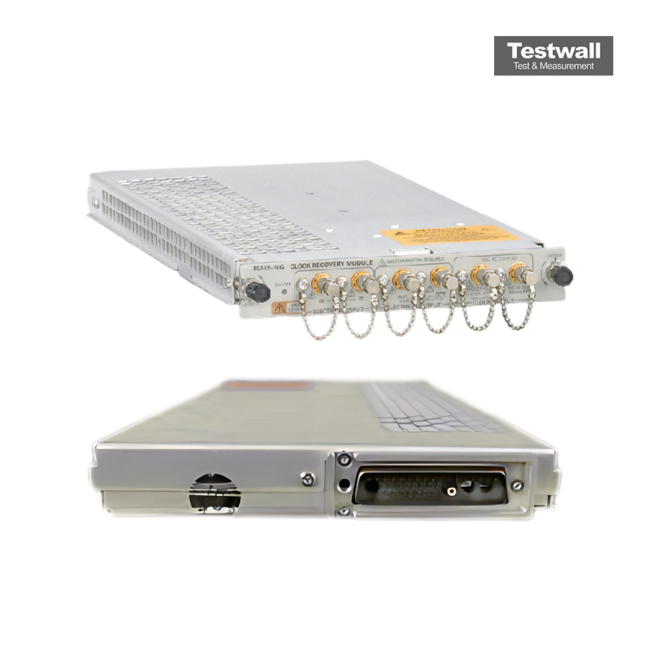

Tektronix 80A05
| Attribute | Value |
|---|---|
| Bandwidth | DC to 4 GHz |
| Input Channels | 2 Electrical Input Channels |
| Optical Input Wavelength Range | 750 nm to 1650 nm |
| Maximum Input Voltage | ±2.5 V (DC + Peak AC) |
| Input Impedance | 50 Ω |
| Optical Connector Type | FC/PC Optical Connector |
| Compatible Mainframes | DSA8200, CSA8000B, TDS8200 |
| Module Type | Dual Optical-to-Electrical Converter Sampling Module |
| Rise Time | Less than 90 ps (typical) |
| Operating Temperature | 0°C to +50°C |
Tektronix 80A05 Options:
- 80A05 - Opt. 10G - Add bit rates: 3.267 Gb/s to 4.25 Gb/s, 4.900 Gb/s to 6.376 Gb/s, 9.800 Gb/s to 12.60 Gb/s
- 80A05 - Opt. C3 - Calibration Service 3 Years
- 80A05 - Opt. C5 - Calibration Service 5 Years
- 80A05 - Opt. D1 - Calibration Data Report
- 80A05 - Opt. D3 - Calibration Data Report (with C3 only)
- 80A05 - Opt. D5 - Calibration Data Report (with C5 only)
- 80A05 - Opt. R3 - Repair Service 3 Years
- 80A05 - Opt. R5 - Repair Service 5 Years
| Model | 80A05 |
|---|
The Tektronix 80A05 Electrical Clock Recovery Module supports clock recovery from serial data across 50 Mb/s to 12.6 Gb/s, including standard and user-selectable rates. It offers integrated support with modules like 80C12B and is compatible with DSA8300 Series oscilloscopes, accepting both single-ended and differential inputs while preserving high signal fidelity through clean 50 Ω paths.
Ideal for testing optical and electrical components, the 80A05 features automatic PLL bandwidth selection for simple setup. It enables jitter, BER, and signal impairment analysis in high-speed optical and electrical environments.
Testwall can supply the used Tektronix 80A05, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80A05.
