Tektronix TDS220
Digital Real-Time Oscilloscope
100 MHz Bandwidth
2 Number of Channels
1 GS/s Sample Rate
2,500 points per channel Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | Monochrome LCD, 320 x 240 pixels |
| Power Requirements | 100–240 VAC, 47–63 Hz, 30 W maximum |
Tektronix TDS220 Options:
- TDS220 - A1 - Universal Euro 220 V, 50 Hz
- TDS220 - A2 - United Kingdom 240 V, 50 Hz
- TDS220 - A3 - Australia 240 V, 50 Hz
- TDS220 - A4 - North America 240 V, 60 Hz
- TDS220 - A5 - Switzerland 220 V, 50 Hz
- TDS220 - AC - China 240 V, 50 Hz
- TDS220 - L1 - French User Manual
- TDS220 - L2 - Italian User Manual
- TDS220 - L3 - German User Manual
- TDS220 - L4 - Spanish User Manual
- TDS220 - L5 - Japanese User Manual
- TDS220 - L6 - Portuguese User Manual
- TDS220 - L7 - Simplified Chinese User Manual
- TDS220 - L8 - Traditional Chinese User Manual
- TDS220 - L9 - Korean User Manual
- TDS220 - LR - Russian User Manual
| Model | TDS220 |
|---|

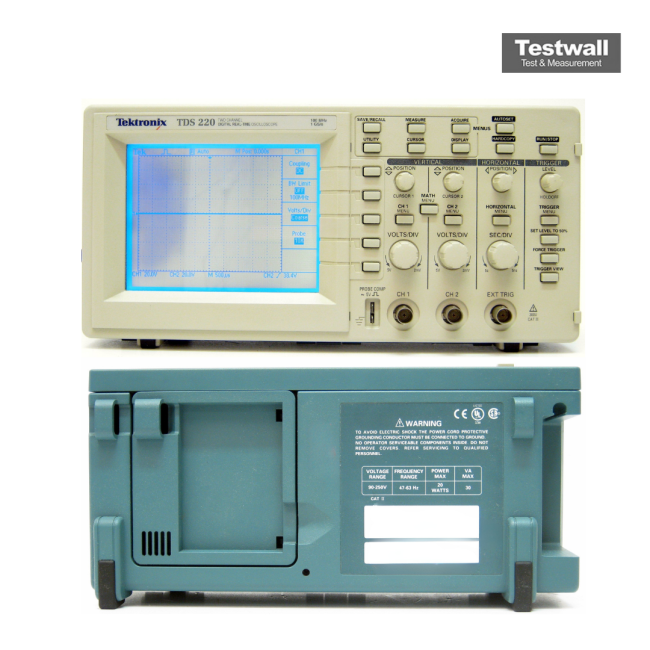

The Tektronix TDS220 is a dual-channel digital oscilloscope offering 100 MHz bandwidth and a 1 GS/s sampling rate on all channels. It includes dual timebase, automatic measurements, waveform and setup memories, and a multi-language user interface, making it suitable for detailed waveform analysis.
Ideal for design, troubleshooting, and educational applications, it supports optional modules and software for extended probing and testing capabilities.
Testwall can supply the used Tektronix TDS220, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS220.
