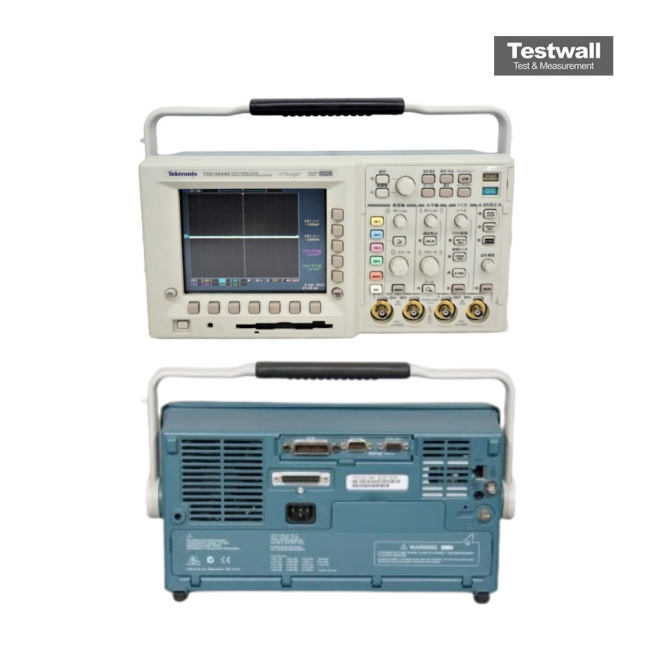

Tektronix TDS3044B
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 4 ns/div to 40 s/div |
| Display | Color LCD, 640 x 480 resolution |
| Input Impedance | 1 MΩ or 50 Ω |
| Connectivity / Interface | GPIB, RS-232, Centronics, CompactFlash |
Tektronix TDS3044B Options:
Options available for the Tektronix TDS3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS3044B - TDS3GV - Communication module: GPIB, RS-232, VGA
- TDS3044B - TDS3EM - Ethernet communication module (TDS3000B)
- TDS3044B - TDS3TRG - Advanced trigger application module
- TDS3044B - TDS3FFT - FFT application module
- TDS3044B - TDS3LIM - Limit testing application module
- TDS3044B - TDS3VID - Extended video application module
- TDS3044B - TDS3SDI - 601 digital video application module
- TDS3044B - TDS3TMT - Telecom mask testing application module
- TDS3044B - TDS3AAM - Advanced analysis application module
- TDS3044B - TDS3BAT - Rechargeable lithium-ion battery pack
The Tektronix TDS3044B is a 4-channel, 400 MHz digital phosphor oscilloscope with 5 GS/s sample rate and 10 kpts record length. It features DRT sampling, WaveAlert anomaly detection, FFT, 25 automatic measurements, real-time intensity grading, and a color LCD for advanced signal analysis and debugging.
Equipped with USB, Ethernet, QuickMenu GUI, and optional battery/thermal printer, it excels in R&D, manufacturing, video, power, and telecom testing applications, capturing 3,600 wfms/s for continuous event visibility.
Testwall can supply the used Tektronix TDS3044B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3044B.
