Tektronix TDS3064B
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 10,000 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 1 ns/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 5.7-inch color LCD |
| Trigger Types | Edge, Video, Pulse Width, Logic, Serial (I2C, SPI, RS-232), Rise/Fall Time |
Tektronix TDS3064B Options:
- TDS3064B - Opt. A0 - North America power
- TDS3064B - Opt. A1 - Universal EURO power
- TDS3064B - Opt. A2 - United Kingdom power
- TDS3064B - Opt. A3 - Australia power
- TDS3064B - Opt. A5 - Switzerland power
- TDS3064B - Opt. A6 - Japan power
- TDS3064B - Opt. A10 - China power
- TDS3064B - Opt. A99 - No power cord
- TDS3064B - Opt. L0 - English (includes front panel overlay)
- TDS3064B - Opt. L1 - French (includes front panel overlay)
- TDS3064B - Opt. L2 - Italian (includes front panel overlay)
- TDS3064B - Opt. L3 - German (includes front panel overlay)
- TDS3064B - Opt. L4 - Spanish (includes front panel overlay)
- TDS3064B - Opt. L5 - Japanese (includes front panel overlay)
- TDS3064B - Opt. L6 - Portuguese (includes front panel overlay)
- TDS3064B - Opt. L7 - Simplified Chinese (includes front panel overlay)
- TDS3064B - Opt. L8 - Traditional Chinese (includes front panel overlay)
- TDS3064B - Opt. L9 - Korean (includes front panel overlay)
- TDS3064B - Opt. LR - Russian (includes front panel overlay)
- TDS3064B - Opt. L99 - No Manual
- TDS3064B - Opt. C3 - Calibration Service 3 Years
- TDS3064B - Opt. C5 - Calibration Service 5 Years
- TDS3064B - Opt. D1 - Calibration Data Report
- TDS3064B - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- TDS3064B - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- TDS3064B - Opt. R5 - Repair Service 5 Years
| Model | TDS3064B |
|---|

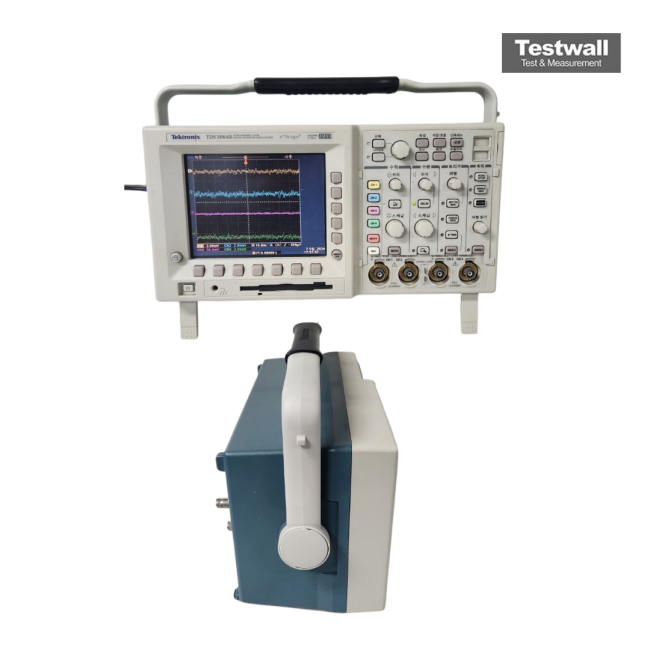

The Tektronix TDS3064B is a high-performance 4-channel digital phosphor oscilloscope offering 600 MHz bandwidth and up to 5 GS/s sampling rate on all channels. With advanced signal analysis and real-time waveform acquisition, it delivers precision and speed for complex electronic diagnostics. WaveAlert functionality instantly detects waveform anomalies, ensuring efficient and accurate signal monitoring.
Equipped with OpenChoice connectivity, custom MyScope windows, and intuitive right-click menus, this oscilloscope simplifies user interaction. Lightweight with optional battery support, it is perfect for both lab and field use.
Testwall can supply the used Tektronix TDS3064B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS3064B.
