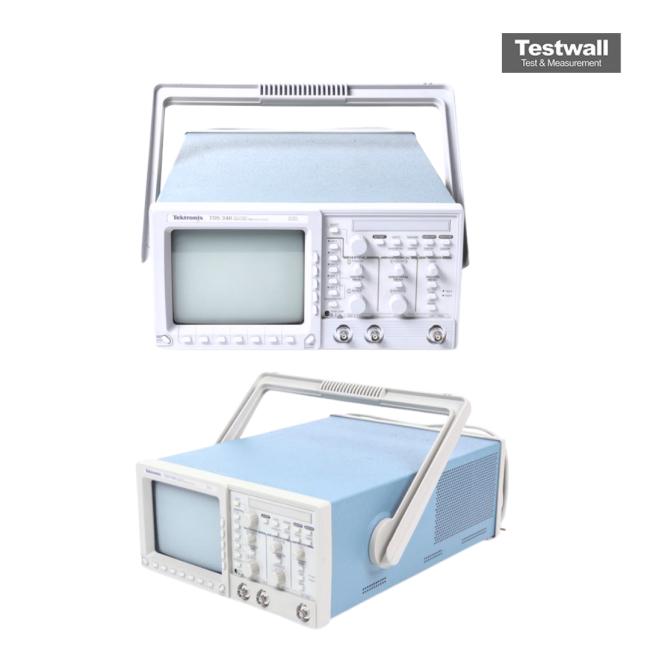

Tektronix TDS340
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 100 MHz |
| Sample Rate | 500 MS/s (single channel), 250 MS/s (two channels) |
| Record Length | 1000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | LCD, monochrome |
| Connectivity | RS-232, Centronics parallel port, GPIB (optional) |
Tektronix TDS340 Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS340 - 05 - Video trigger
- TDS340 - 13 - RS-232 and Centronics interfaces
- TDS340 - 1F - Built-in floppy disk drive
- TDS340 - 1M - Long record length
- TDS340 - 2F - Advanced DSP math
- TDS340 - 1R - Rack mount configuration
- TDS340 - 1K - Instrument cart
The Tektronix TDS340 is a 100 MHz, 2-channel digital oscilloscope featuring 500 MS/s real-time sampling, 2 mV/div to 10 V/div vertical resolution, and a 3.5” floppy disk drive. It provides advanced acquisition modes including Dot, Vector, Accumulate, and Vector Accumulate for reliable waveform analysis. It ensures accurate real-time measurements, minimizing aliasing through five-times bandwidth oversampling.
Perfect for design, troubleshooting, and production testing, the TDS340 captures single-shot and transient events with 10 ns peak detect, FFT analysis, and 21 automatic measurements. Option 14 adds GPIB, RS-232-C, printer, and VGA output.
Testwall can supply the used Tektronix TDS340, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS340.
