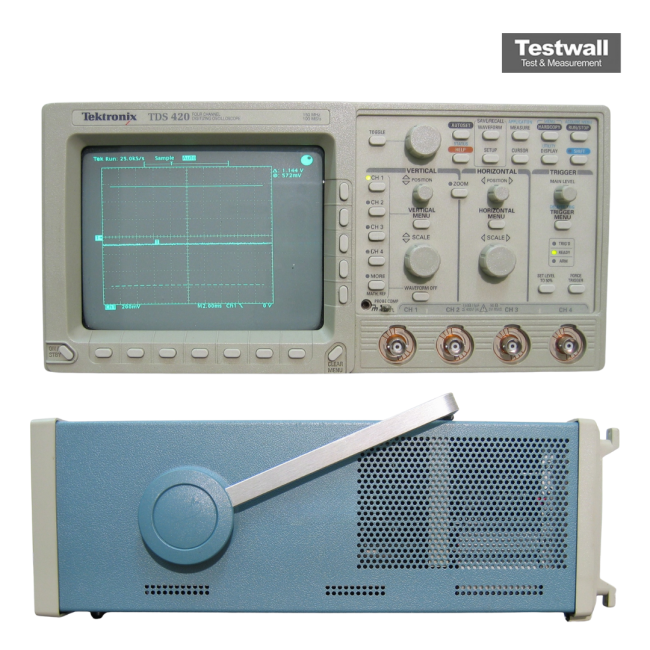

Tektronix TDS420
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Sample Rate | 100 MS/s per channel (200 MS/s on 2 channels) |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 2.5 ns/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display Type | Color LCD |
| Connectivity/Interface | GPIB, RS-232, Centronics (Parallel) |
Tektronix TDS420 Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS420 - 05 - Video trigger
- TDS420 - 13 - RS-232 and Centronics interfaces
- TDS420 - 1F - Built-in floppy disk drive
- TDS420 - 1M - Long record length
- TDS420 - 2F - Advanced DSP math
- TDS420 - 1R - Rack mount configuration
- TDS420 - 1K - Instrument cart
The Tektronix TDS420 is a 4-channel digital oscilloscope with 150 MHz bandwidth and 100 MS/s sampling rate, offering precision with features like 1.5% accuracy, 15kpts record length, and up to 12-bit resolution in Hi-Res mode. Its versatile inputs support ±5 division positioning, while built-in RS-232 and Centronics interfaces streamline connectivity. Key functions include FFT Math, Video options, 25 automatic measurements, and glitch capture via 10 ns peak detect mode.
Ideal for design, troubleshooting, and production tests, the TDS420 simplifies waveform analysis with Pass/Fail testing, template matching, and advanced trigger modes, enhancing measurement efficiency in demanding environments.
Testwall can supply the used Tektronix TDS420, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS420.
