Tektronix

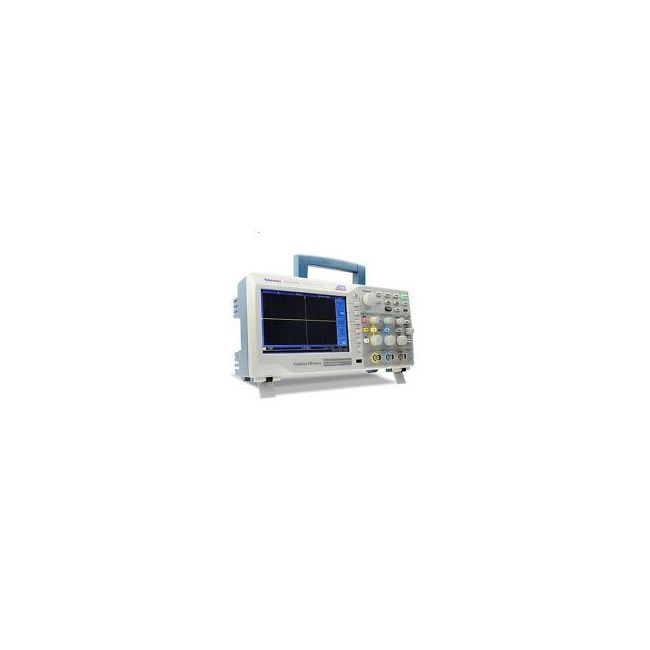

Tektronix TDS500D
4 Number of Channels
500 MHz Bandwidth
500 MS/s (single channel), 250 MS/s (all channels) Sample Rate
Up to 50,000 points per channel Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s (single channel), 250 MS/s (all channels) |
| Record Length | Up to 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity/Interface | GPIB, RS-232, Centronics parallel port |
Tektronix TDS500D Options:
- TDS500D - Opt. 05 - Add video trigger (NTSC, PAL, HDTV, FlexFormat™). (Not available on the TDS 794D)
- TDS500D - Opt. 1M - Add 130 K/channel memory length (500 K max on TDS 794D, TDS 784D, TDS 754D, TDS 580D, TDS 540D; 250 K max on TDS 724D, TDS 520D)
- TDS500D - Opt. 2M - Add 2M/channel memory length (8 M max on TDS 794D, TDS 784D, TDS 754D, TDS 580D, TDS 540D; 4 M max on TDS 724D, TDS 520D). Includes internal hard disk drive
- TDS500D - Opt. 13 - (TDS 580D, TDS 540D, TDS 520D only) Add RS-232C and Centronics hardcopy interfaces
- TDS500D - Opt. 2F - (TDS 580D, TDS 540D, TDS 520D only) Extended waveform math: FFT, integration, and differentiation
- TDS500D - Opt. 2C - Communication Signal Analyzer; includes comm triggers and communication mask testing
- TDS500D - Opt. 3C - Short-wavelength (Fibre Channel FC133, FC266, FC513, FC1063) Optical Reference Receiver; includes P6701B and system calibration (Not Available on the TDS 794D)
- TDS500D - Opt. 4C - Long-wavelength (SONET/SDH OC1/STM0, OC3/STM1, OC12/STM4) Optical Reference Receiver; includes P6703B and system calibration (Not Available on the TDS 794D)
- TDS500D - Opt. 31 - (TDS 794D only) Add 1 each P6339A buffered passive probe
- TDS500D - Opt. 32 - (TDS 794D only) Add 1 each P6217 active probe
- TDS500D - Opt. 33 - (TDS 794D, TDS 784D, TDS 580D only) Add 1 each P6158 low capacitance probe
- TDS500D - Opt. 34 - Add 1 each P6247 differential probe
- TDS500D - Opt. 35 - (TDS 754D, TDS 724D, TDS 540D, TDS 520D only) Add 1 each P6243 active probe
- TDS500D - Opt. 36 - (TDS 784D, TDS 754D, TDS 724D, TDS 580D, TDS 540D, TDS 520D only) Add 1 each P6139A passive probe
- TDS500D - Opt. 37 - (TDS 784D and TDS 580D only) Add 1 each P6245 active probe
- TDS500D - Opt. 2D - (TDS 724D, TDS 520D only) Delete 2 each standard probes
- TDS500D - Opt. 4D - (TDS 754D, TDS 540D only) Delete 4 each standard probes
- TDS500D - Opt. A1 - European power cord (220 V, 50 Hz)
- TDS500D - Opt. A2 - UK power cord (240 V, 50 Hz)
- TDS500D - Opt. A3 - Australian power cord (240 V, 50 Hz)
- TDS500D - Opt. A4 - North American power cord (240 V, 60 Hz)
- TDS500D - Opt. A5 - Swiss power cord (220 V, 50 Hz)
- TDS500D - Opt. 1K - Add K420 scope cart
- TDS500D - Opt. 1R - Rackmount kit
- TDS500D - Opt. L1 - Substitute French user manual for English user manual
- TDS500D - Opt. L3 - Substitute German user manual for English user manual
- TDS500D - Opt. L5 - Substitute Japanese user manual for English user manual
- TDS500D - Opt. L9 - Substitute Korean user manual for English user manual
- TDS500D - Opt. C3 - Three years of Calibration Services
- TDS500D - Opt. C5 - Five years of Calibration Services
- TDS500D - Opt. D1 - Cal Data Report
- TDS500D - Opt. D3 - Test Data (requires Opt. C3)
- TDS500D - Opt. D5 - Test Data (requires Opt. C5)
- TDS500D - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS500D |
|---|
The Tektronix TDS500D is a DPO-class oscilloscope engineered for deep analysis of fast and complex signals, offering superior accuracy and insight.
It integrates DPX™ real-time acquisition for detailed signal visualization, connects with TDSPWR1 software for power analysis, and includes a standard three-year coverage.
Testwall can supply the used Tektronix TDS500D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS500D.
