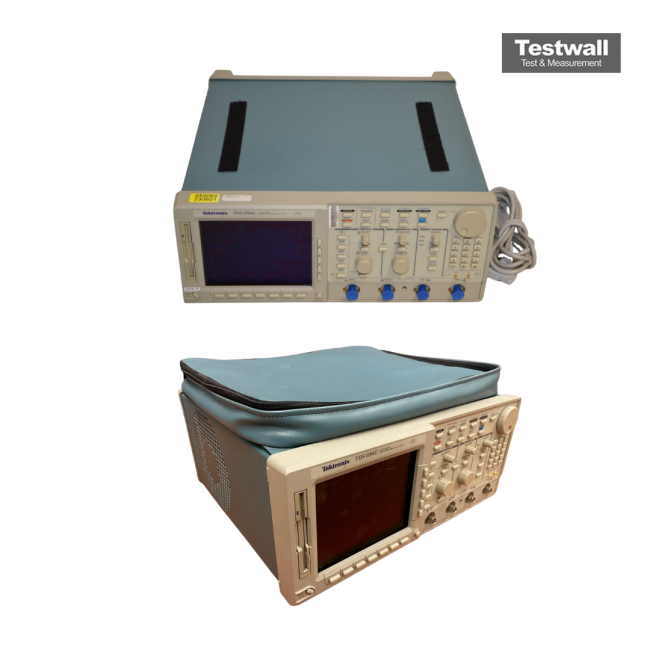

Tektronix TDS694C
4 Channel 3GHz 10GS/s Digital Storage Oscilloscope
3 GHz Bandwidth
10 GS/s (on 2 channels), 5 GS/s (on 4 channels) Sample Rate
4 Number of Channels
15,000 points per channel Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 3 GHz |
| Sample Rate | 10 GS/s (on 2 channels), 5 GS/s (on 4 channels) |
| Number of Channels | 4 |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 200 ps/div to 10 s/div |
| Input Impedance | 50 Ω or 1 MΩ (with 13 pF) |
| Display | 10.2-inch color LCD display |
| Connectivity / Interface | GPIB, RS-232, Centronics parallel port, floppy disk drive |
Tektronix TDS694C Options:
- TDS694C - Opt. 05 - Video Trigger, NTSC, PAL, HDTV, FlexFormat™ (Except TDS694C)
- TDS694C - Opt. 1K - Model K420 Instrument Cart
- TDS694C - Opt. 1M - 120 K Record Length (TDS694C only)
- TDS694C - Opt. 1R - Rackmount Kit
- TDS694C - Opt. 31 - Add 1 ea. P6339A Buffered Passive Probe (TDS694C only)
- TDS694C - Opt. 33 - Add 1 ea. P6158 Low Capacitance Probe
- TDS694C - Opt. 34 - Add 1 ea. P6247 Differential Probe (Except TDS694C)
- TDS694C - Opt. 36 - Add 1 ea. P6139A Passive Probe (Except TDS694C)
- TDS694C - Opt. 37 - Add 1 ea. P6245 Active Probe
- TDS694C - Opt. 38 - Add 1 ea. P6249 4 GHz Active Probe (TDS694C only)
- TDS694C - Opt. 39 - Add 1 ea. P6248 1.7 GHz Differential Probe (TDS694C only)
- TDS694C - Opt. HD - Internal Hard Disk Drive
- TDS694C - Opt. A1 - Universal Euro 220 V, 50 Hz
- TDS694C - Opt. A2 - UK 240 V, 50 Hz
- TDS694C - Opt. A3 - Australian 240 V, 50 Hz
- TDS694C - Opt. A4 - North American; product set to operate at 60 Hz, 15A
- TDS694C - Opt. A5 - Switzerland 220 V, 50 Hz
- TDS694C - Opt. AC - China 240 V, 50 Hz (Not in TDS694C)
- TDS694C - Opt. C3 - Three years of Calibration Services
- TDS694C - Opt. D1 - Calibration Data Report
- TDS694C - Opt. D3 - Test Data (requires Opt. C3)
| Model | TDS694C |
|---|
The Tektronix TDS694C is a 4-channel digital oscilloscope with 3 GHz bandwidth and 10 GS/s sample rate per channel. It features advanced trigger functions, 120,000 points/channel record length (with option), and 1% vertical accuracy.
Perfect for timing-critical measurements in digital designs, telecommunications, and high-energy physics. Capture glitches, jitter, and signal violations with superior precision.
Testwall can supply the used Tektronix TDS694C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS694C.
