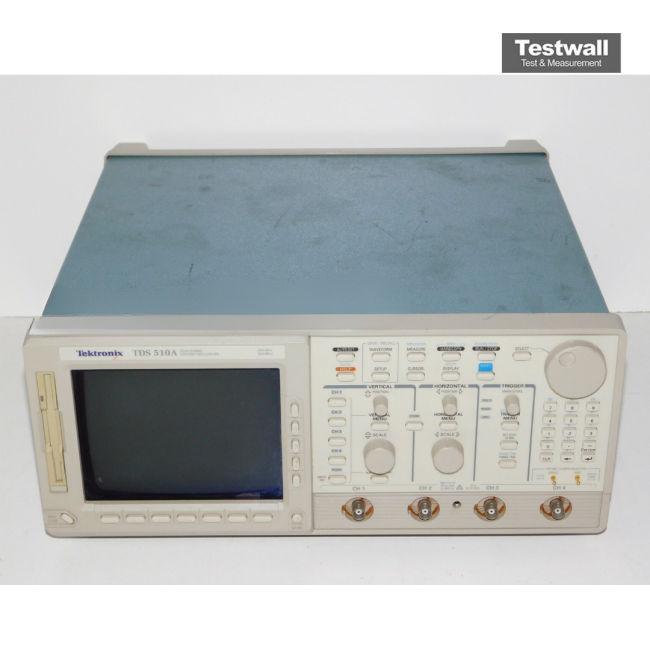

Tektronix TDS510A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s (single channel), 250 MS/s (all channels) |
| Record Length | up to 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity / Interface | GPIB, RS-232, Centronics (parallel) ports |
Tektronix TDS510A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS510A - 05 - Video trigger
- TDS510A - 13 - RS-232 and Centronics interfaces
- TDS510A - 1F - Built-in floppy disk drive
- TDS510A - 1M - Long record length
- TDS510A - 2F - Advanced DSP math
- TDS510A - 1R - Rack mount configuration
- TDS510A - 1K - Instrument cart
The Tektronix TDS510A 4 Channel 500MHz Digitising Scope offers advanced signal acquisition with four independent channels and a bandwidth of 500MHz, ensuring precise capture of high-speed waveforms. It features a high sampling rate and deep memory for accurate analysis, ideal for complex digital and analog signal testing applications.
Designed for engineers and technicians, this scope provides versatile triggering, measurement, and analysis functions, making it suitable for R&D, troubleshooting, and system validation tasks across various industries.
Testwall can supply the used Tektronix TDS510A 4 Channel 500MHz Digitising Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS510A 4 Channel 500MHz Digitising Scope.
