Tektronix DSA8200
| Attribute | Value |
|---|---|
| Bandwidth | Up to 70 GHz (with appropriate sampling modules) |
| Sample Rate | Up to 200 kSamples/s equivalent-time sampling |
| Number of Channels | Up to 4 channels (with dual-channel sampling modules) |
| Timebase Range | 10 ps/div to 1 ks/div |
| Vertical Resolution | 12-bit ADC resolution |
| Jitter Measurement Floor | Less than 150 fs RMS intrinsic jitter |
| Display | 10.4-inch color LCD display with 1024 x 768 resolution |
| Operating System | Windows XP Embedded |
| Connectivity | USB, GPIB, Ethernet (LAN) interfaces |
| Power Requirements | 100–240 VAC, 50/60 Hz, 400 W maximum |
Tektronix DSA8200 Options:
- 82A04 - Opt. 60G - Extends the BW range to 60 GHz
- 82A04 - Filter - For non-sinusoidal phase reference clock signal with frequency below 8 GHz (order appropriate filter from accessory list)
- 82A04 - Opt. C5 - Calibration service 5 years
- 82A04 - Opt. R3 - Repair service 3 years
- 82A04 - Opt. R5 - Repair service 5 years (including warranty)
| Model | DSA8200 |
|---|

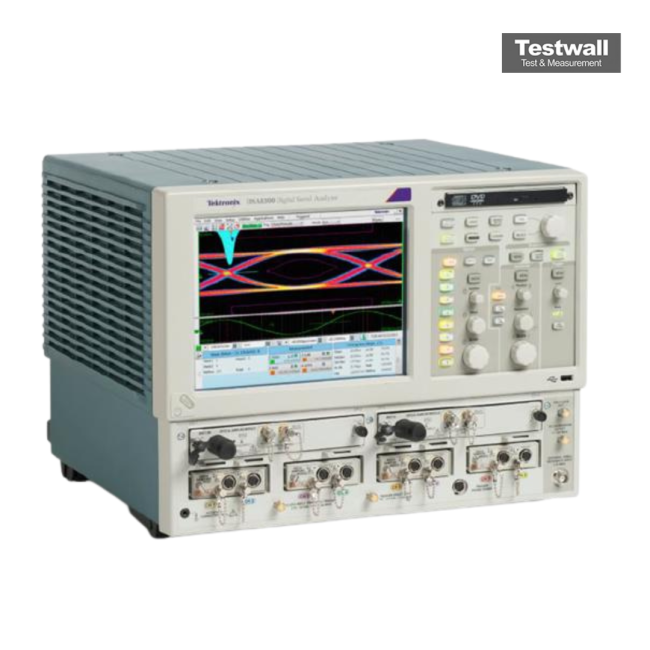

The Tektronix DSA8200 Digital Serial Analyzer is a precision high-speed sampling oscilloscope ideal for TDR, TDT, and serial data analysis up to 80 GHz. Supporting up to 8 input channels, it delivers advanced jitter, noise, BER, and eye contour measurements. Equipped with Windows XP interface and integrated optical/electrical modules, it excels in mask testing, SSC acquisition, and S-parameter analysis with industry-best 200 fsRMS jitter.
Perfect for semiconductor validation, gigabit interconnect testing, and telecom/datacom component analysis, it supports TDR bandwidth up to 50 GHz, true-differential remote samplers, and FrameScan™ acquisition for accurate fault isolation.
Testwall can supply the used Tektronix DSA8200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA8200.
