Tektronix TDS520B
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s (single channel), 250 MS/s (two channels) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD, 640 x 480 resolution |
| Connectivity/Interface | GPIB, RS-232, Centronics (parallel printer port) |
| Model | TDS520B |
|---|

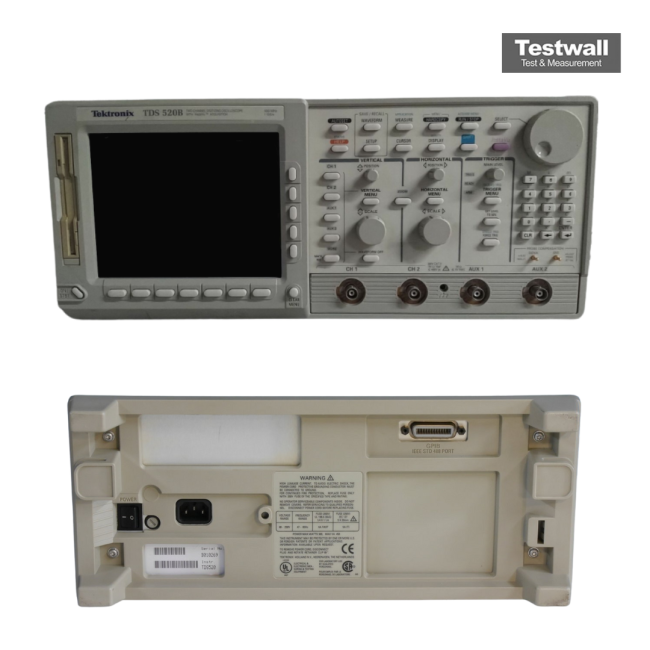

The Tektronix TDS520B is a 500 MHz, 2-channel digital oscilloscope equipped with a 1 GS/s sample rate and 50 kpts record length. It includes 2 auxiliary channels, color display, and advanced triggering capabilities like pulse width, glitch, pattern, and time-out triggering. It offers vertical resolution up to 12 bits in Hi-Res mode, VGA output, and optional 3.5-inch floppy disk drive for data storage.
Ideal for troubleshooting, production testing, and design verification, the TDS520B supports waveform pass/fail testing, automatic measurements, and has GPIB programmability for seamless integration in lab setups.
Testwall can supply the used Tektronix TDS520B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS520B.
