Tektronix THS720A
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Sample Rate | 500 MS/s |
| Number of Channels | 2 |
| Record Length | 2500 points per channel |
| Vertical Sensitivity | 5 mV/div to 100 V/div |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Maximum Input Voltage | 600 V RMS CAT II (with THS700 probes) |
| Display | Backlit LCD, 240 x 240 pixels |
| Battery Life | Up to 2 hours with standard battery pack |
| Multimeter Functions | AC/DC voltage, AC/DC current, resistance, continuity, diode test, capacitance |
| Model | THS720A |
|---|

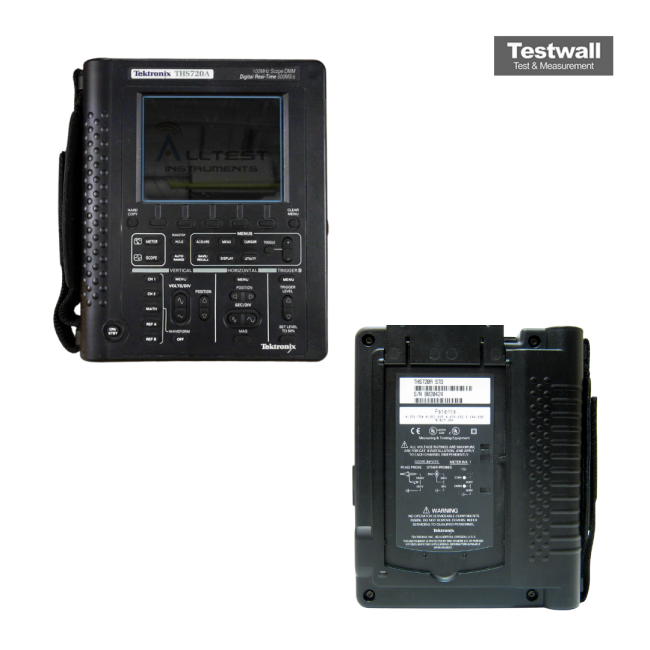

The Tektronix THS720A from the THS700 Series is a dual-channel, battery-operated oscilloscope and True RMS multimeter offering 100 MHz bandwidth and 500 MS/s sampling per channel. It features external triggering, 8 ns glitch capture, RS-232 communication, and advanced measurement capabilities. With isolated, floating channels rated to 600 VRMS and a bright backlit display, it delivers versatile, field-ready performance.
This unit supports simultaneous scope and DMM operations, roll mode, and built-in datalogger with comprehensive triggering options including delay, pulse width, and video (line count and field select).
Testwall can supply the used Tektronix THS720A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THS720A.
