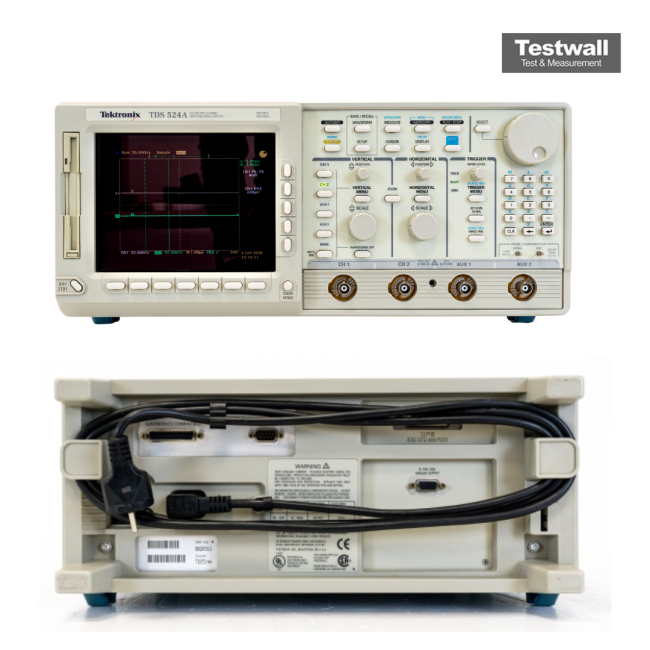

Tektronix TDS524A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s (single channel), 250 MS/s (per channel, all channels active) |
| Record Length | Up to 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 2.5 ns/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity / Interface | GPIB, RS-232, Centronics (parallel) ports |
Tektronix TDS524A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS524A - 05 - Video trigger
- TDS524A - 13 - RS-232 and Centronics interfaces
- TDS524A - 1F - Built-in floppy disk drive
- TDS524A - 1M - Long record length
- TDS524A - 2F - Advanced DSP math
- TDS524A - 1R - Rack mount configuration
- TDS524A - 1K - Instrument cart
The Tektronix TDS524A is a high-performance 500 MHz, 2-channel digital oscilloscope with 2 GS/s sampling rate, 15,000 points record length per channel, and 8-bit vertical resolution. It supports advanced trigger capabilities, variable persistence displays, FFT, and differential and current probes, allowing accurate analysis of voltage, current, and power waveforms.
Designed for digital and analog debugging, research, and production testing, it offers intuitive operation, versatile I/O, and compatibility with engineering tools for complete signal diagnostics.
Testwall can supply the used Tektronix TDS524A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS524A.
