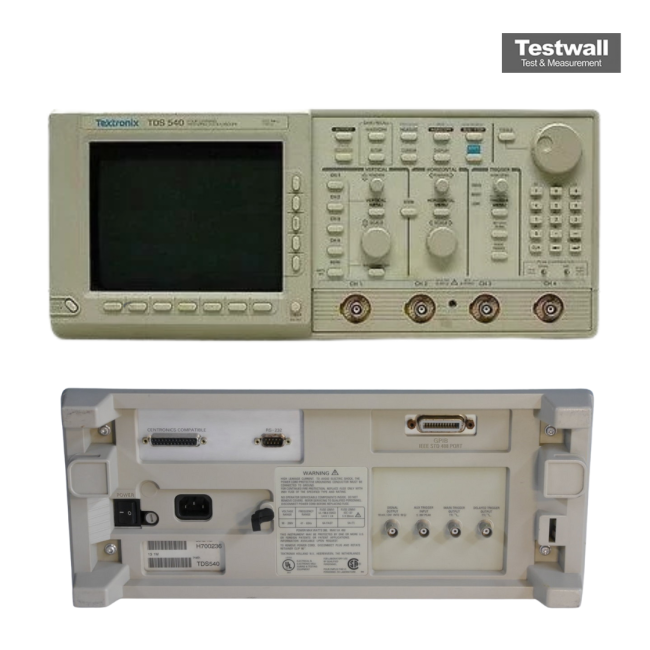

Tektronix TDS540B
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 1 GS/s (single channel), 500 MS/s (all channels) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display Type | Color LCD |
| Connectivity / Interface | GPIB, RS-232, Centronics (parallel printer port), floppy disk drive |
Tektronix TDS540B Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS540B - 05 - Video trigger
- TDS540B - 13 - RS-232 and Centronics interfaces
- TDS540B - 1F - Built-in floppy disk drive
- TDS540B - 1M - Long record length
- TDS540B - 2F - Advanced DSP math
- TDS540B - 1R - Rack mount configuration
- TDS540B - 1K - Instrument cart
The Tektronix TDS540B is a high-performance oscilloscope with 500 MHz bandwidth, 2 GS/s sample rate, and four channels each with 50 kpts record length. It features advanced triggering capabilities including glitch, runt, and state triggering, and sensitivity ranging from 1 mV/div to 10 V/div. The unit includes infinite and variable persistence displays, Hi-Res acquisition mode with up to 12-bit resolution, and optional 3.5-inch floppy disk drive.
This oscilloscope is designed for applications in digital design, R&D, telecommunications, and automated testing, with dual-window zoom, segmentable acquisition memory, and GPIB programmability enhancing its usability.
Testwall can supply the used Tektronix TDS540B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS540B.
