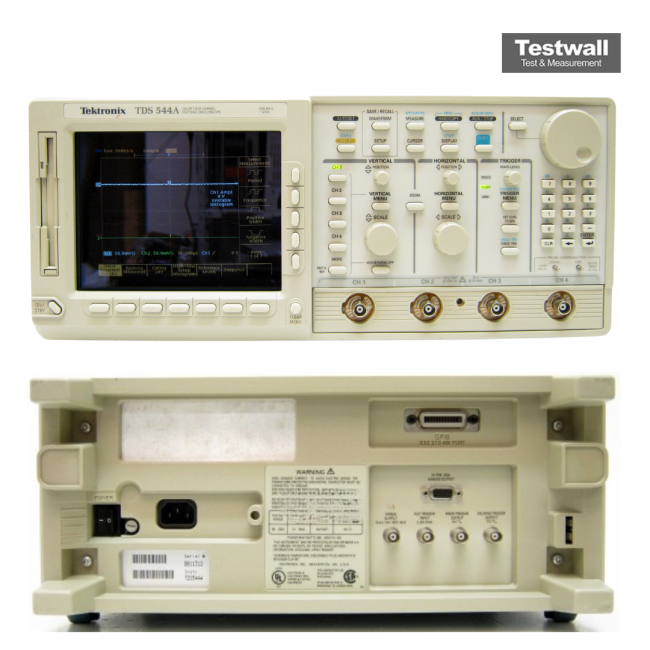

Tektronix TDS544A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 1 GS/s (single channel), 500 MS/s (all channels) |
| Number of Channels | 4 |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Glitch, Runt, Slew Rate, Logic, Pulse Width, Setup/Hold |
Tektronix TDS544A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS544A - 05 - Video trigger
- TDS544A - 13 - RS-232 and Centronics interfaces
- TDS544A - 1F - Built-in floppy disk drive
- TDS544A - 1M - Long record length
- TDS544A - 2F - Advanced DSP math
- TDS544A - 1R - Rack mount configuration
- TDS544A - 1K - Instrument cart
The Tektronix TDS544A is a 4-channel, 500 MHz digital oscilloscope featuring a 1 GS/s sampling rate, 15 kpts memory per channel, and advanced waveform analysis with FFT, integration, and differentiation. It includes 8-bit vertical resolution, enhanced to 12-bit in high-res mode, and supports GPIB, RS232C, and floppy disk interfaces.
Equipped with width, glitch, runt, state, and pattern triggering, the TDS544A is ideal for medical, automotive, and electronic R&D environments, offering unparalleled signal capture and measurement accuracy.
Testwall can supply the used Tektronix TDS544A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS544A.
