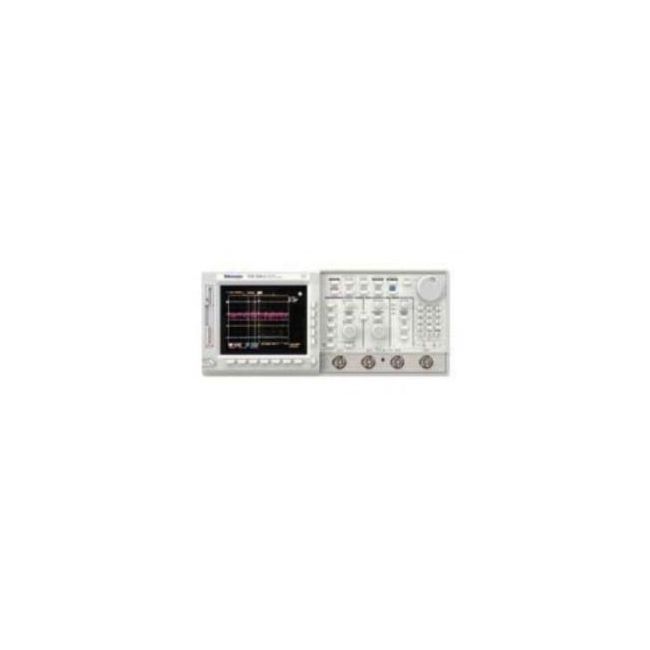

Tektronix TDS600C
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | Up to 2 GS/s |
| Number of Channels | 4 |
| Record Length | Up to 15,000 points per channel |
| Vertical Resolution | 8-bit |
| Timebase Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity | GPIB, RS-232, Centronics (parallel) interfaces |
| Trigger Types | Edge, Glitch, Runt, Slew Rate, Logic, Pulse Width, Setup/Hold |
Tektronix TDS600C Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS600C - 05 - Video trigger
- TDS600C - 13 - RS-232 and Centronics interfaces
- TDS600C - 1F - Built-in floppy disk drive
- TDS600C - 1M - Long record length
- TDS600C - 2F - Advanced DSP math
- TDS600C - 1R - Rack mount configuration
- TDS600C - 1K - Instrument cart
The Tektronix TDS600C is a high-speed digitizing oscilloscope from the InstaVu family, offering 1 GHz bandwidth and 5 GS/s sampling rate per channel. Its advanced architecture enables exceptional waveform capture rates of over 400,000 waveforms per second, ideal for detailed signal analysis. Full-featured documentation and control interfaces enhance usability for advanced diagnostics.
Perfect for R&D labs, the TDS600C excels in capturing precise transients and troubleshooting complex electronic signals, ensuring accurate measurements in demanding environments.
Testwall can supply the used Tektronix TDS600C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS600C.
